2023
Year
MOONEN
Builder
124' (37.8m)
Length
5
Cabins

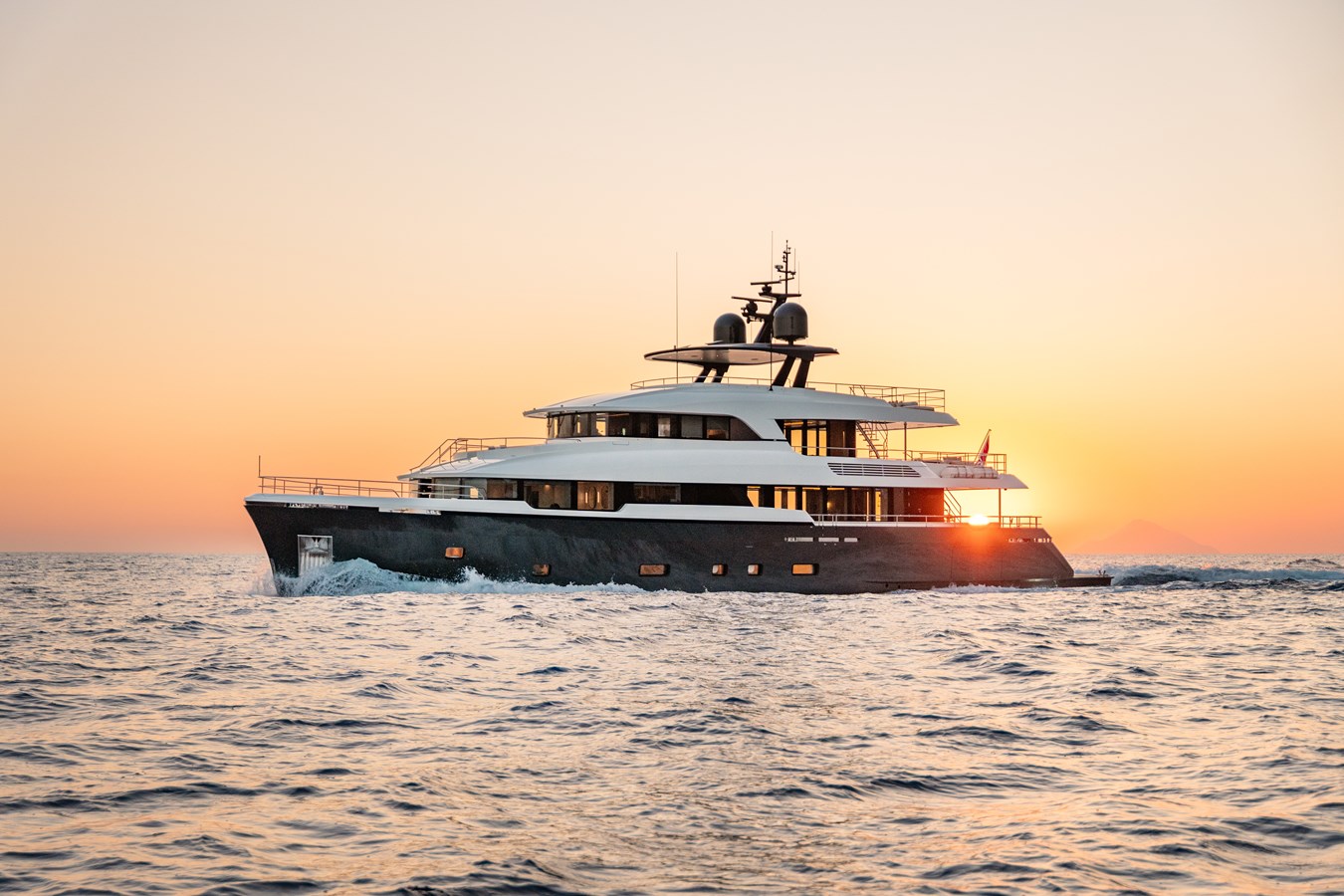

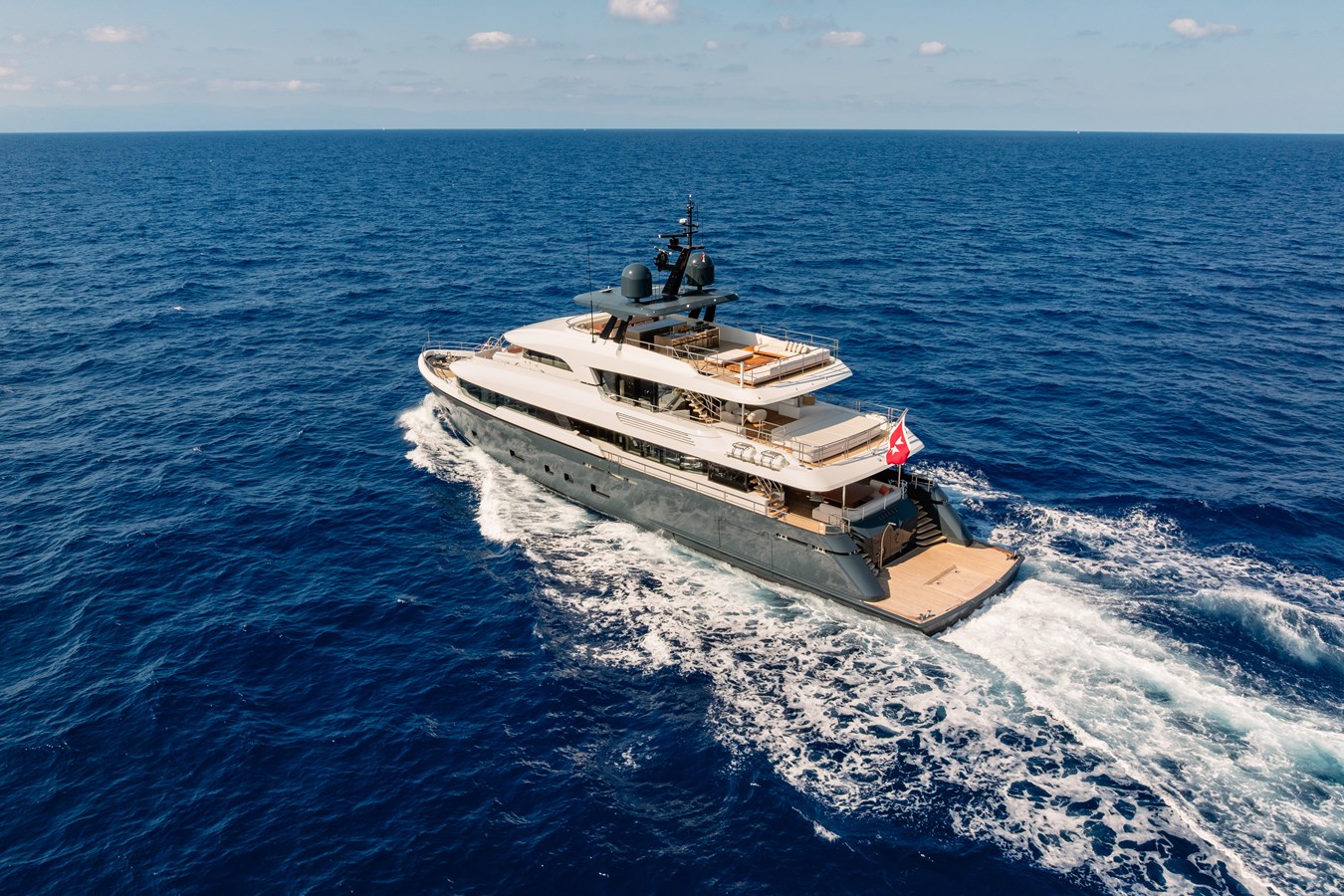

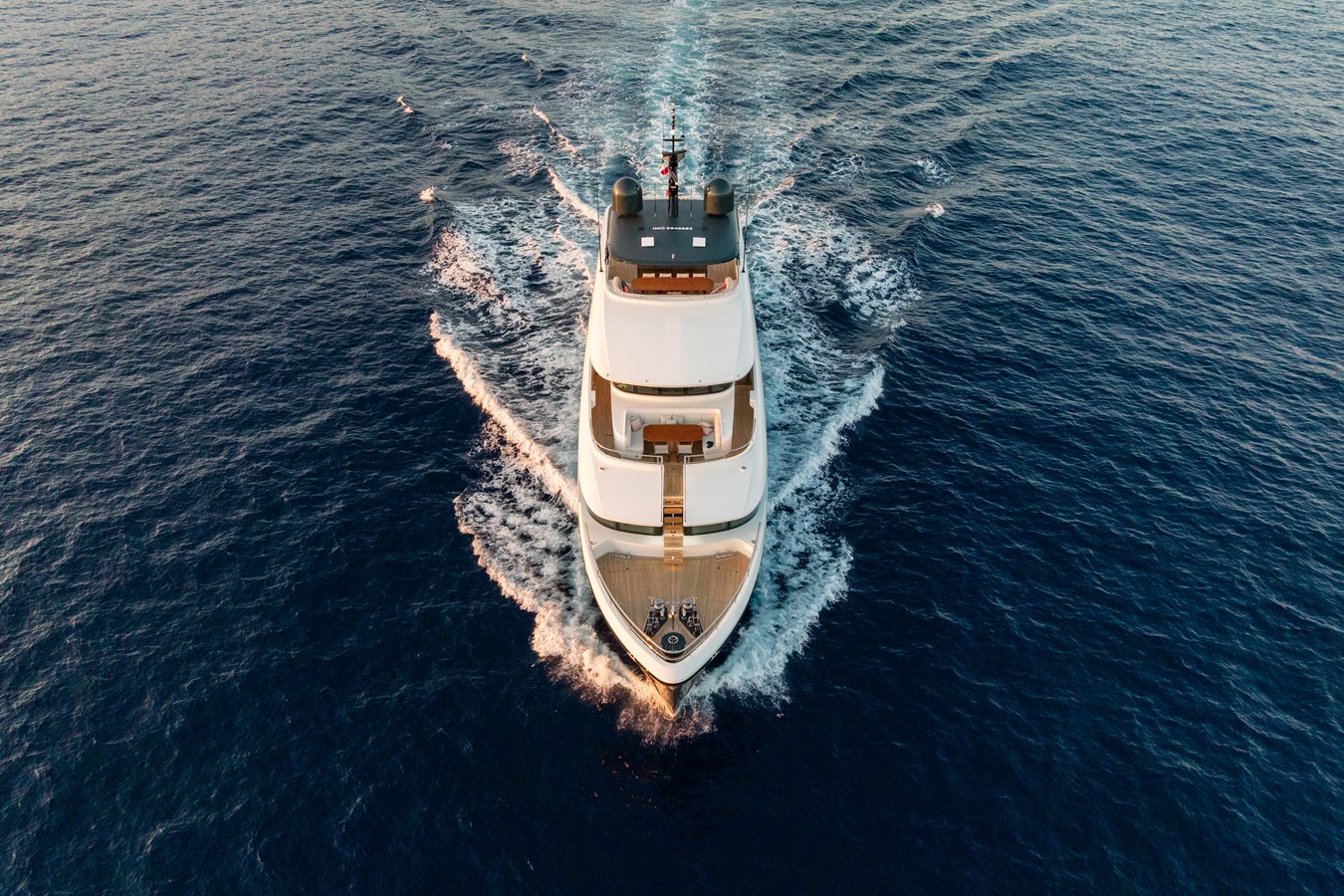

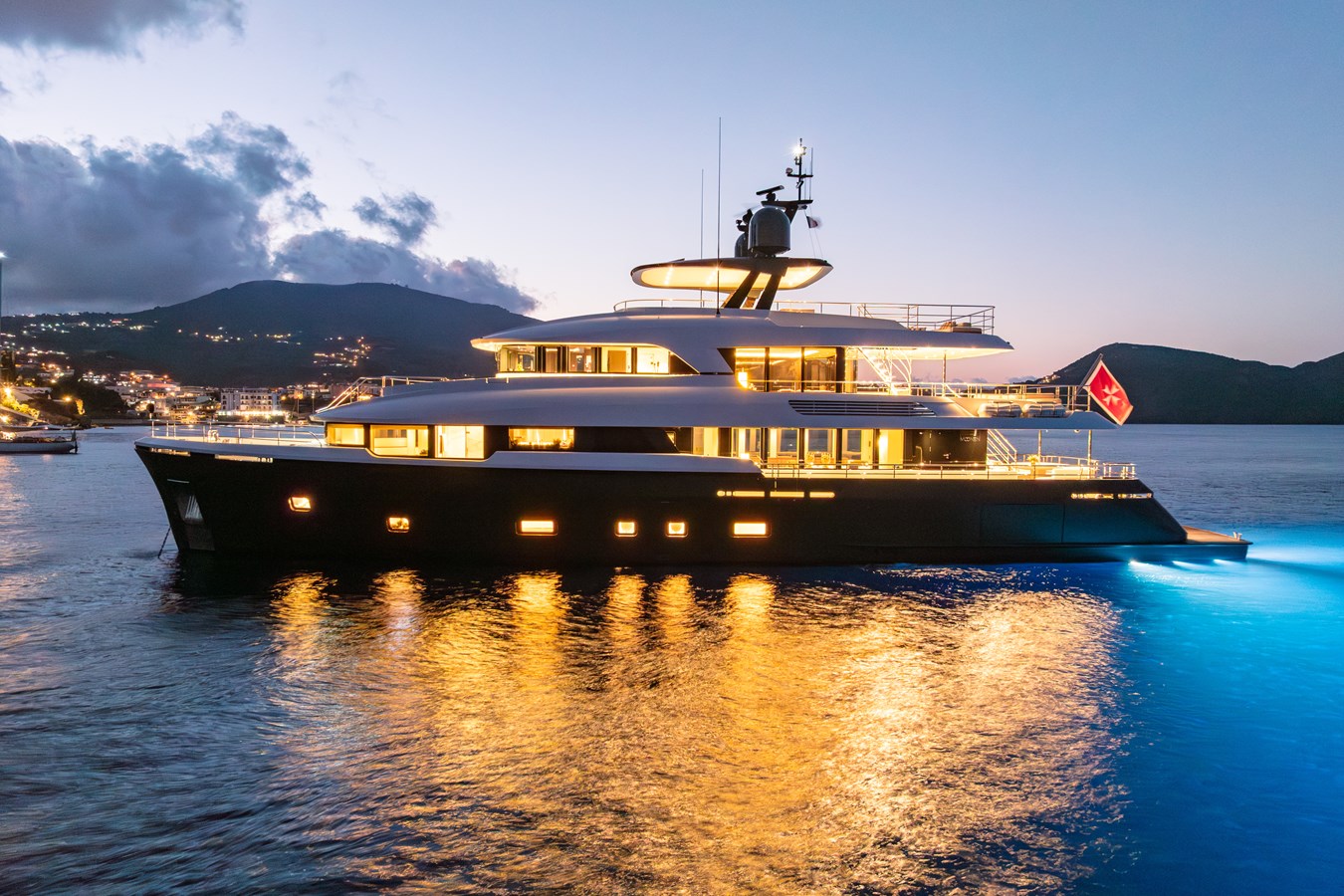

Yacht for sale is a 2023 MOONEN 124' "Cocoon " Motor Yacht in Livorno, Tuscany, Italy.



The 37.8m (124ft) COCOON, is a Martinique Model delivered in 2023 by Moonen
Yachts in The Netherlands. This award winning and most popular build in the Moonen
Caribbean line, features exterior design by renowned Dutch designer René van der
Velden and naval architecture by Diana Yacht Design, the Scandinavian-styled interior
was designed by Sweden’s Andreas Martin-Löf Arkitekter.

Elegant and sophisticated, COCOON is both an entertainer's dream and an ideal
family getaway. With space to accommodate 12 guests and 7 crew, her exterior
design focuses on creating the perfect indoor-outdoor connection, with plenty of
comfortable seating and dining areas spread over three decks.

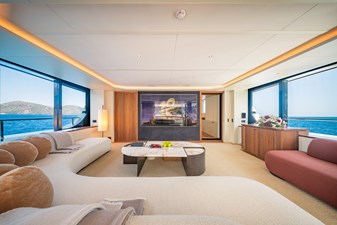

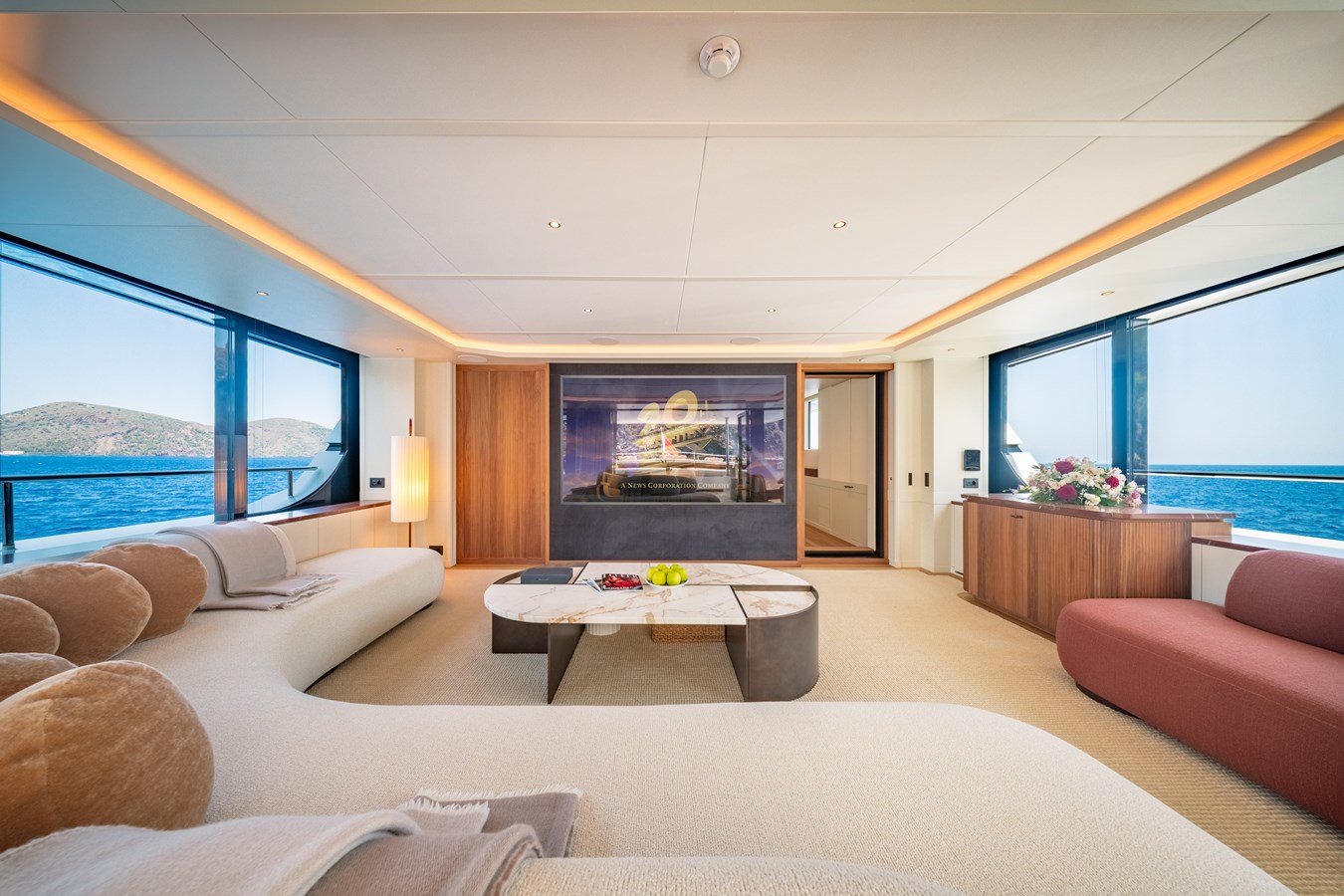

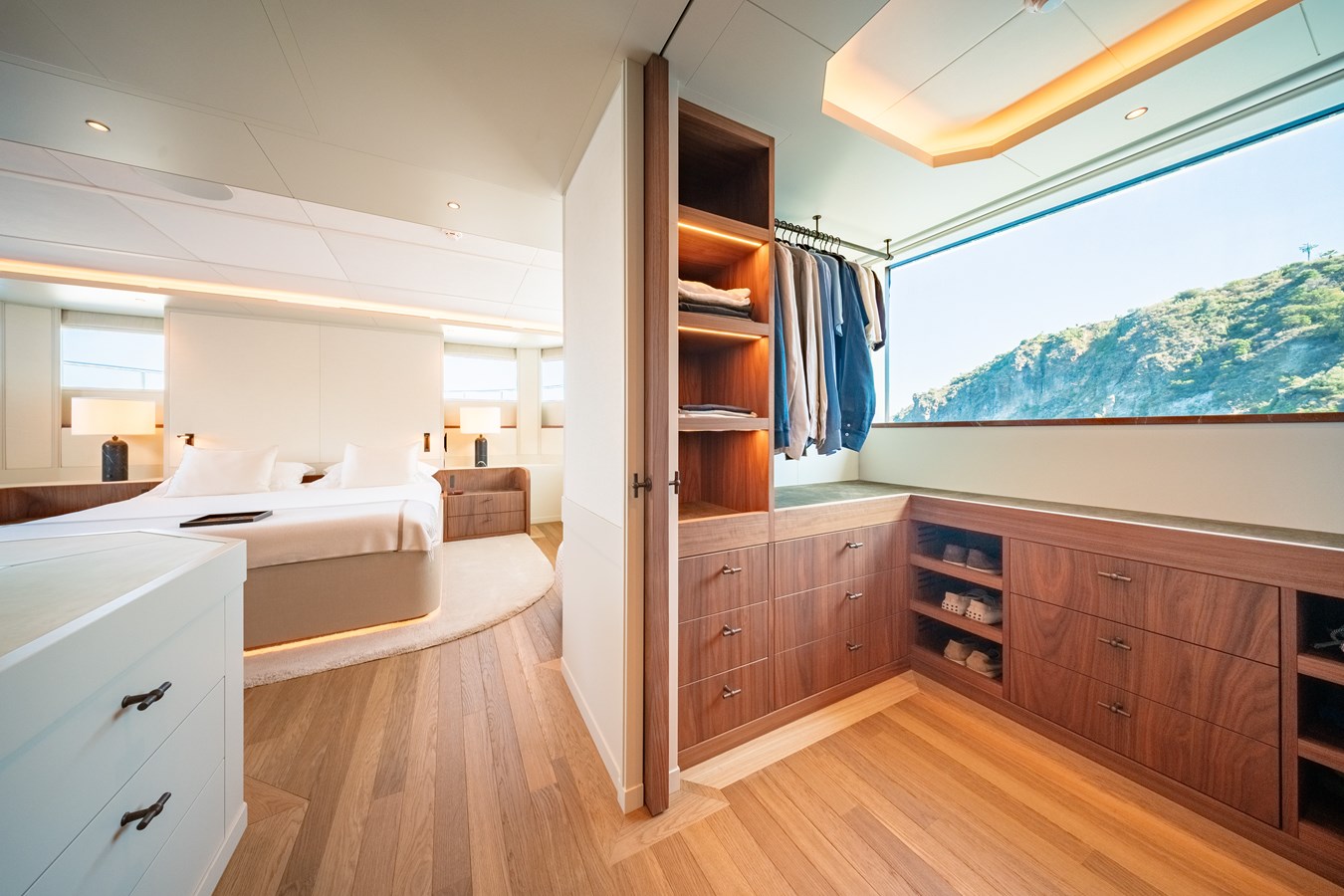

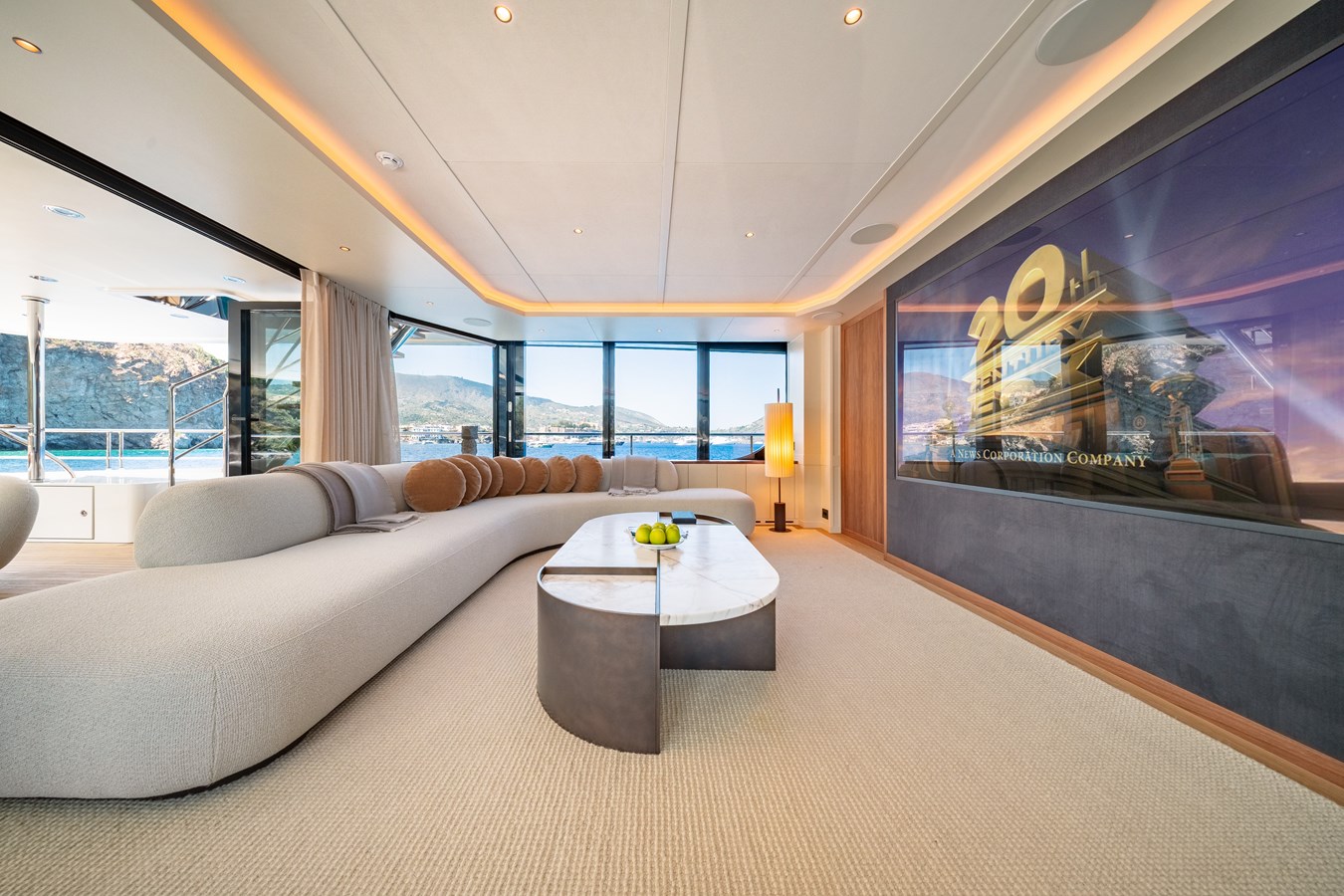

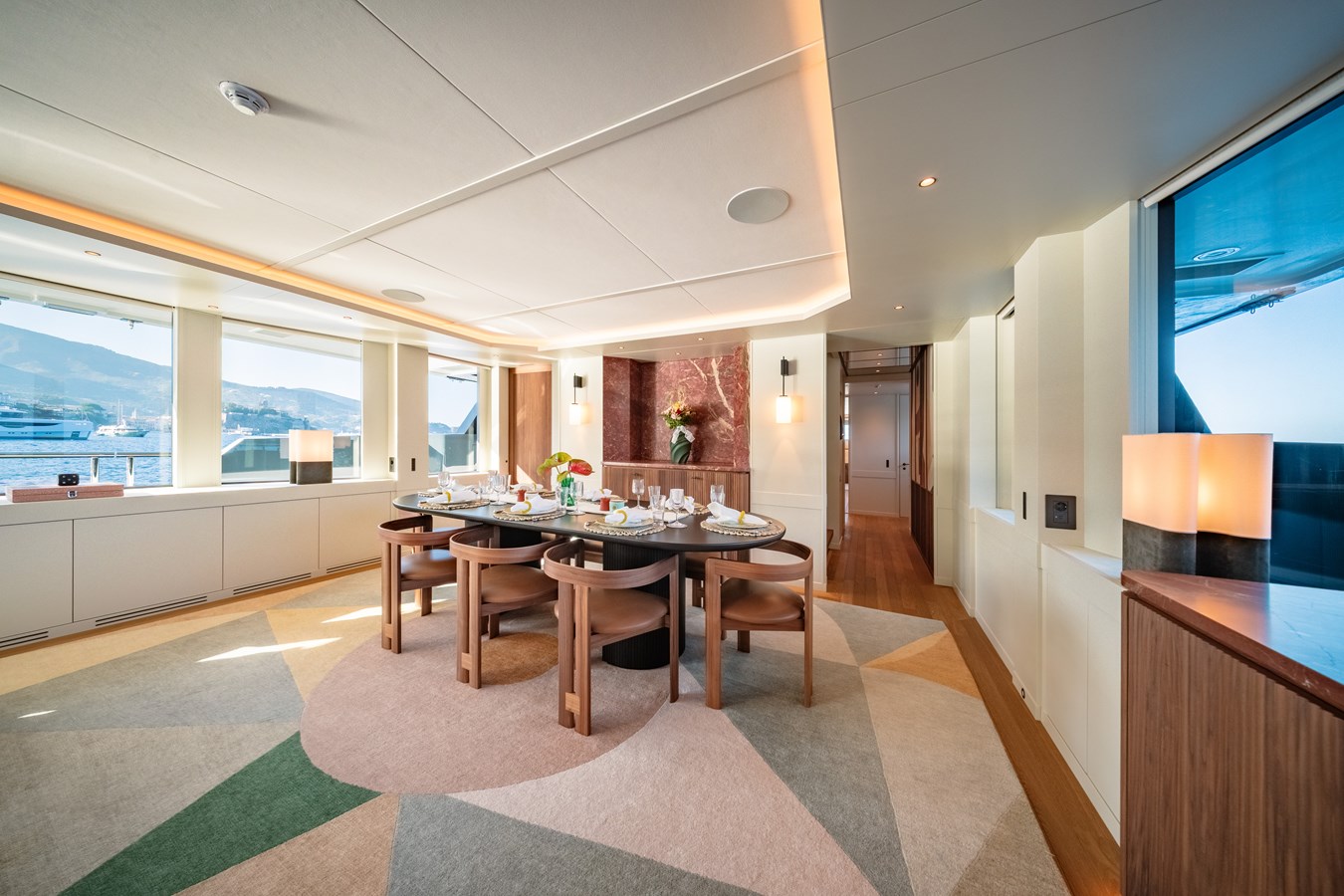

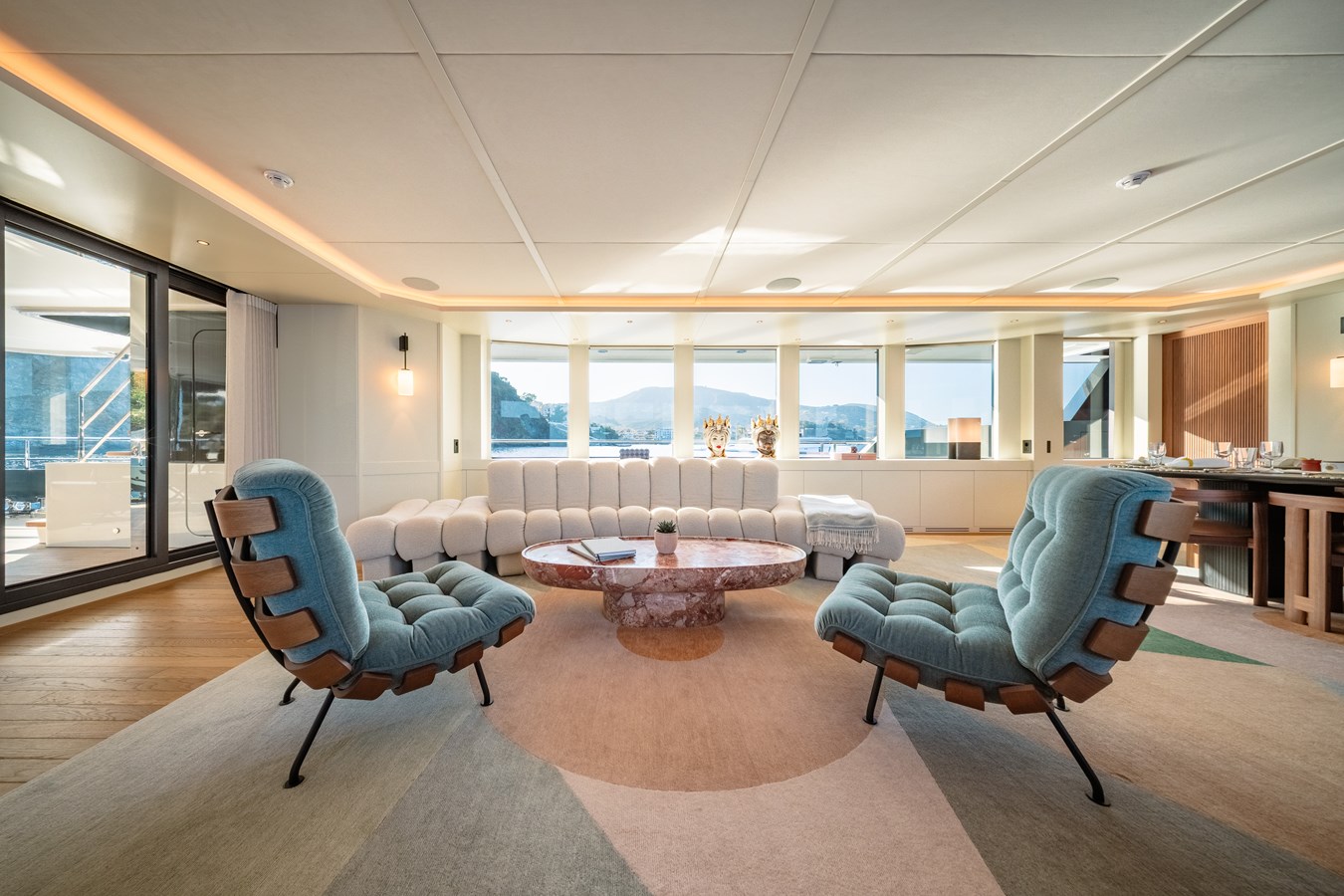

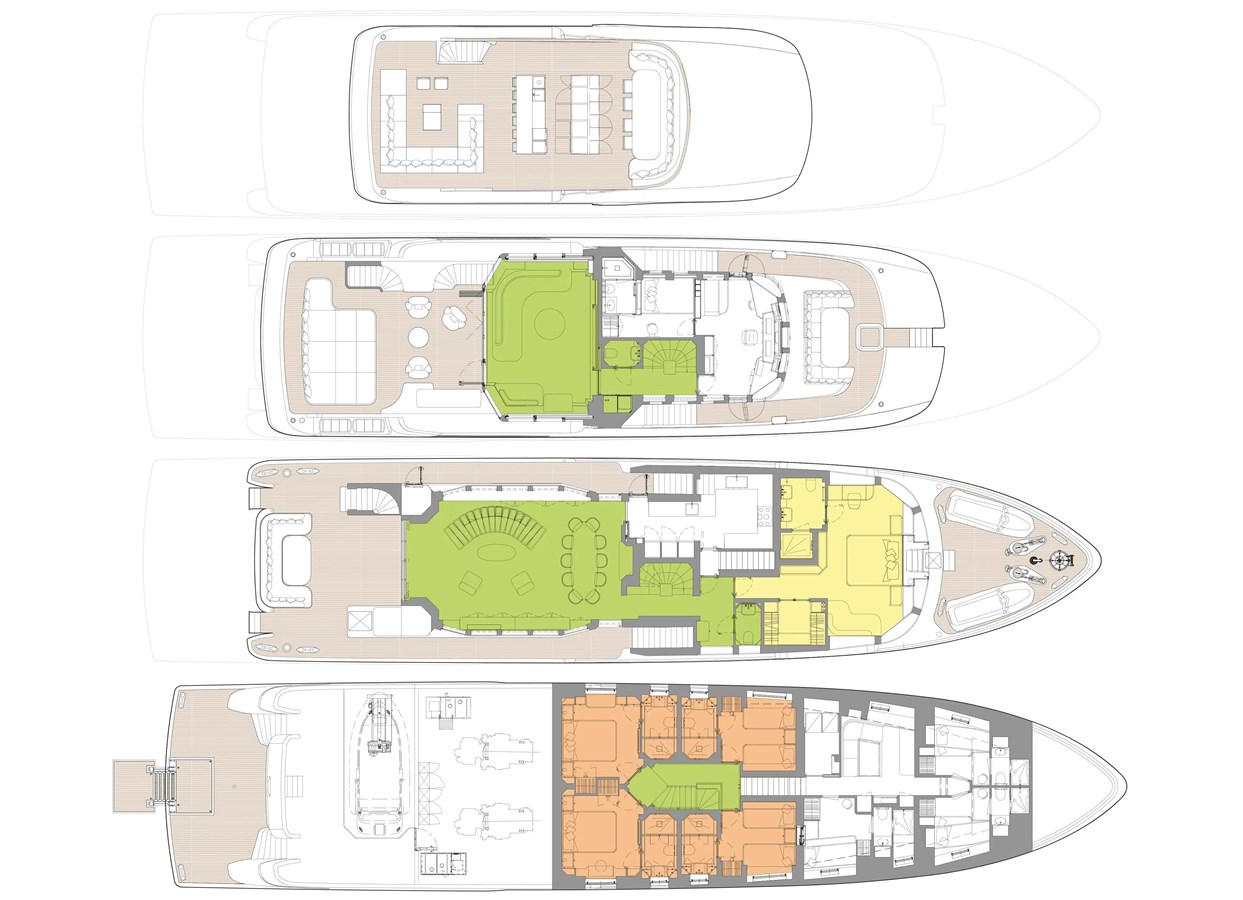

The spacious main deck is home to the large saloon, adjacent formal dining area, a

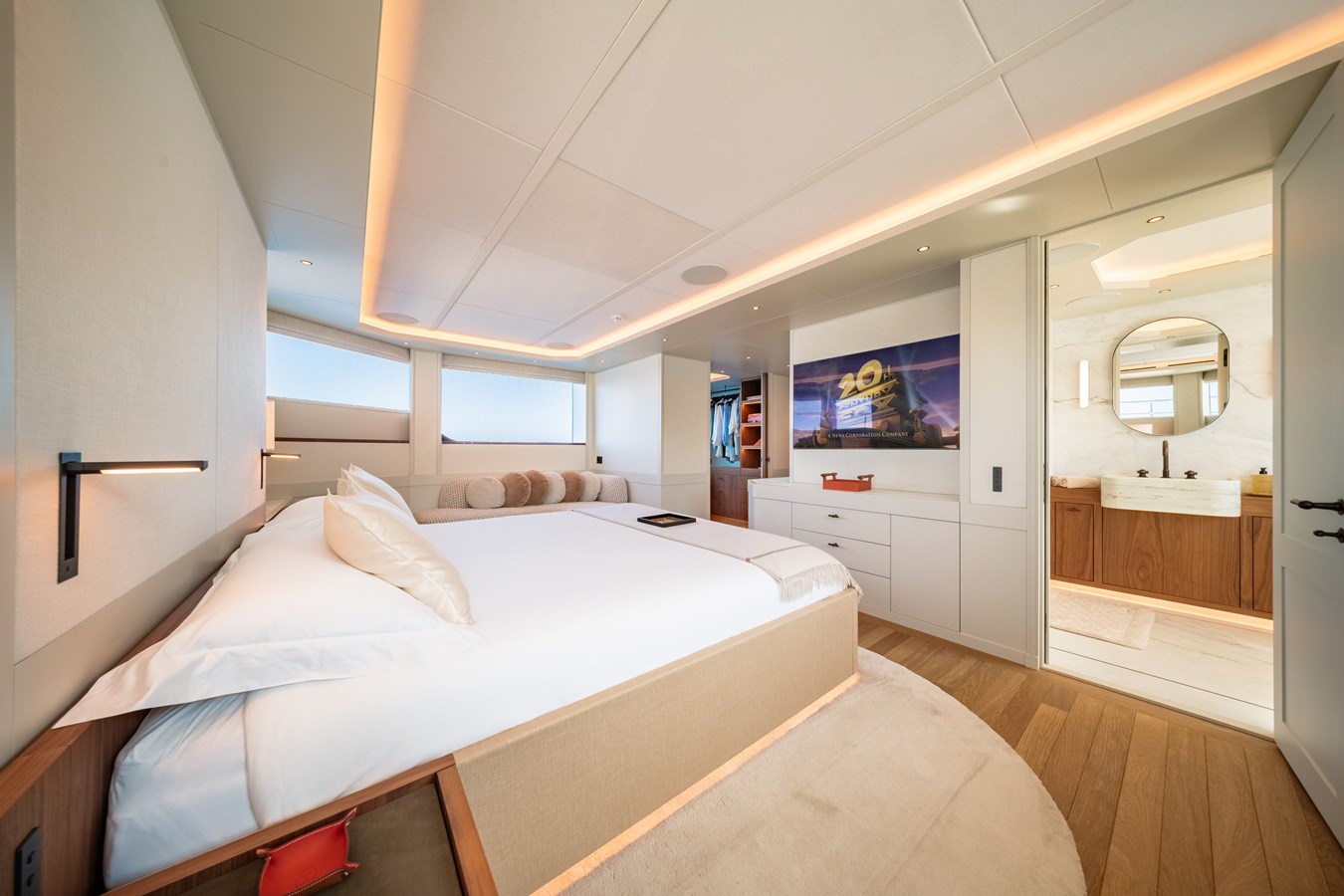

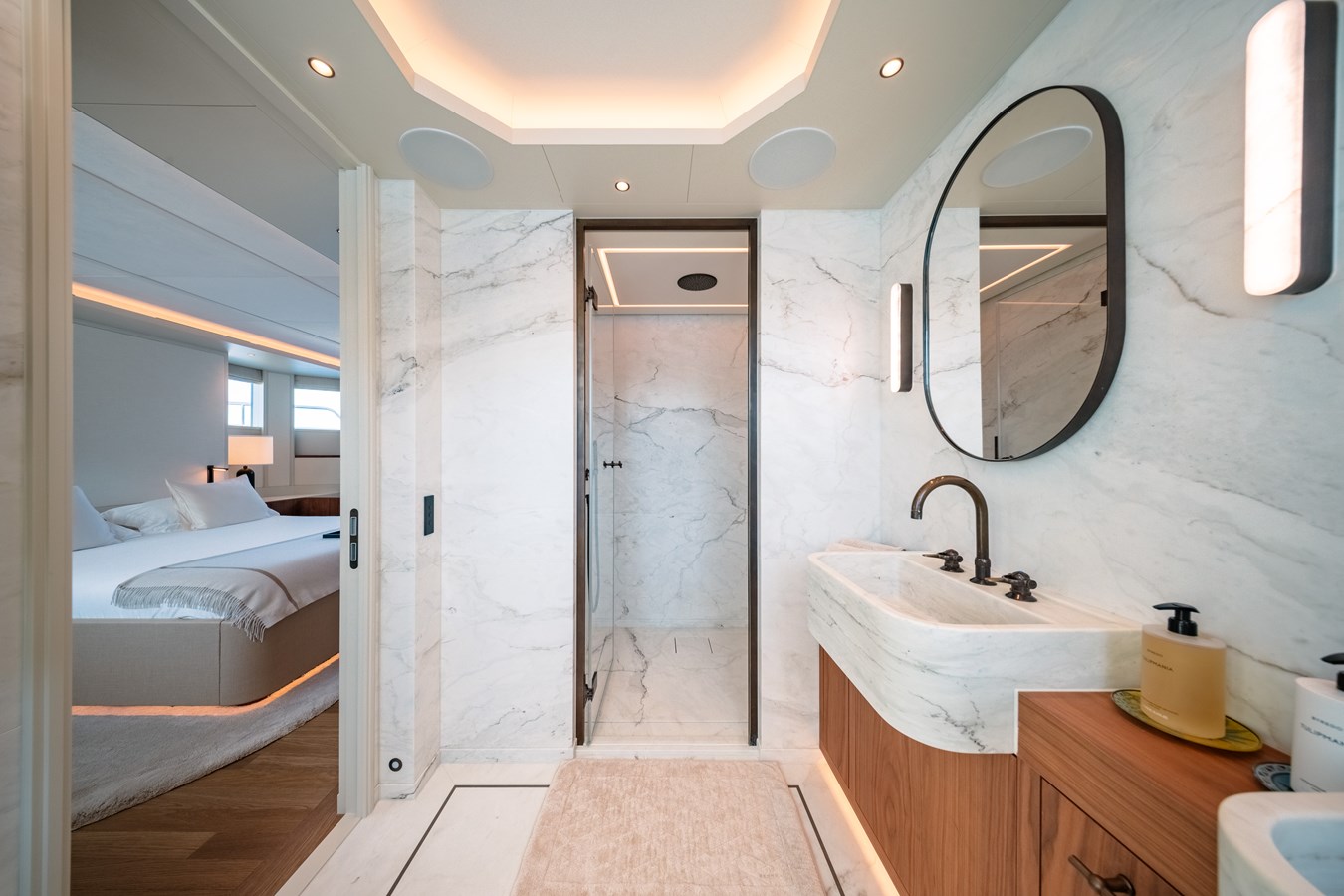

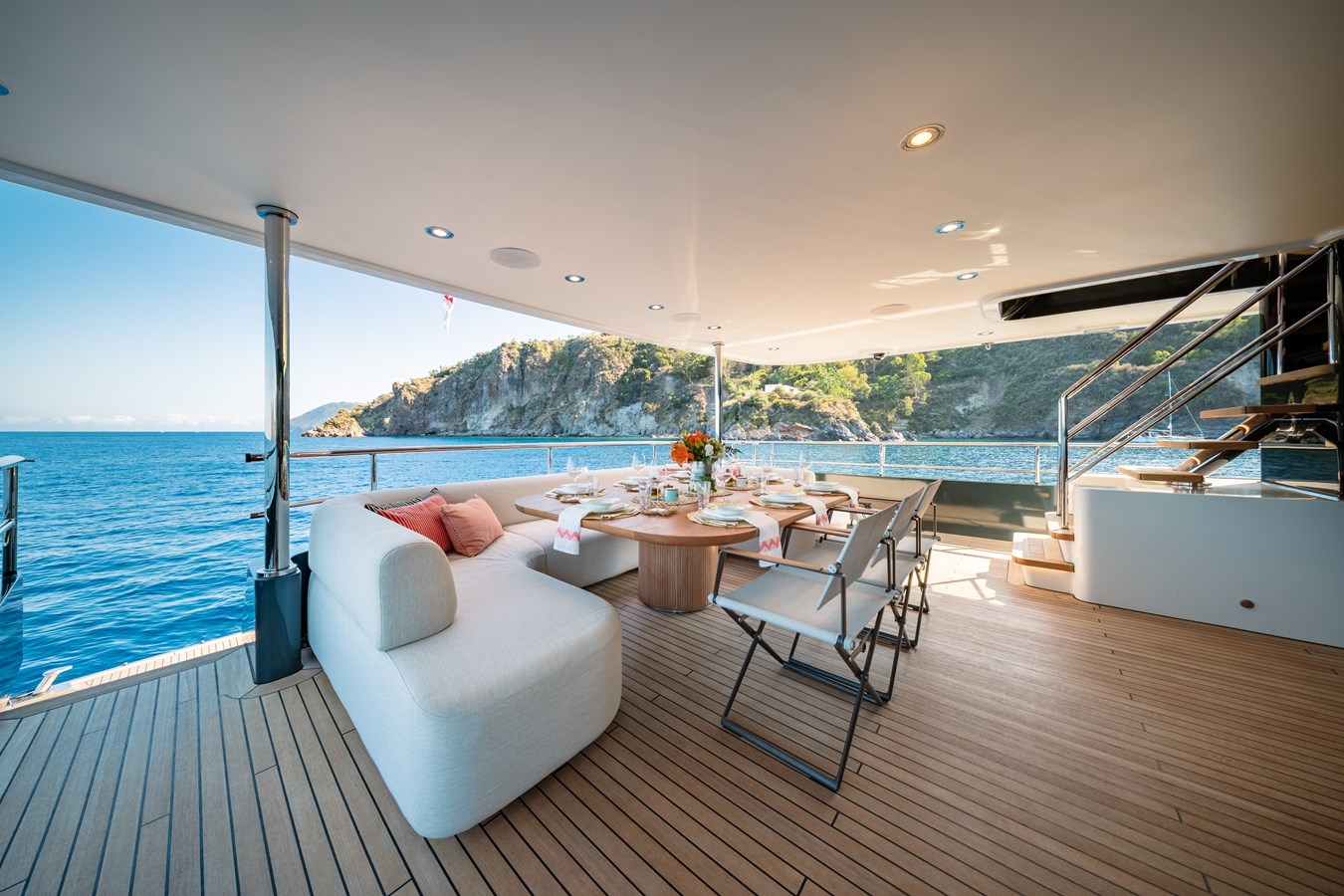

large galley and an impressive master suite with His and Hers bathroom. Outside, main

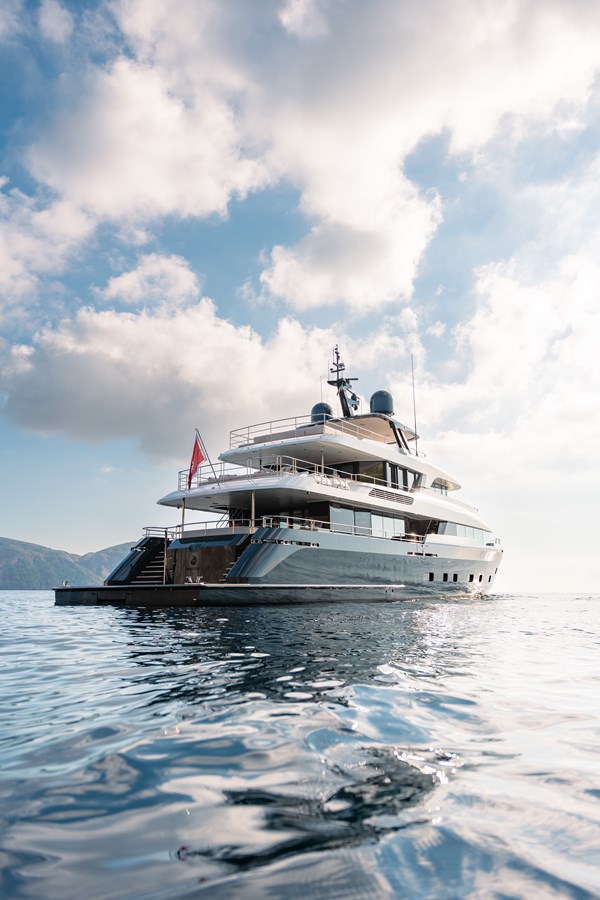

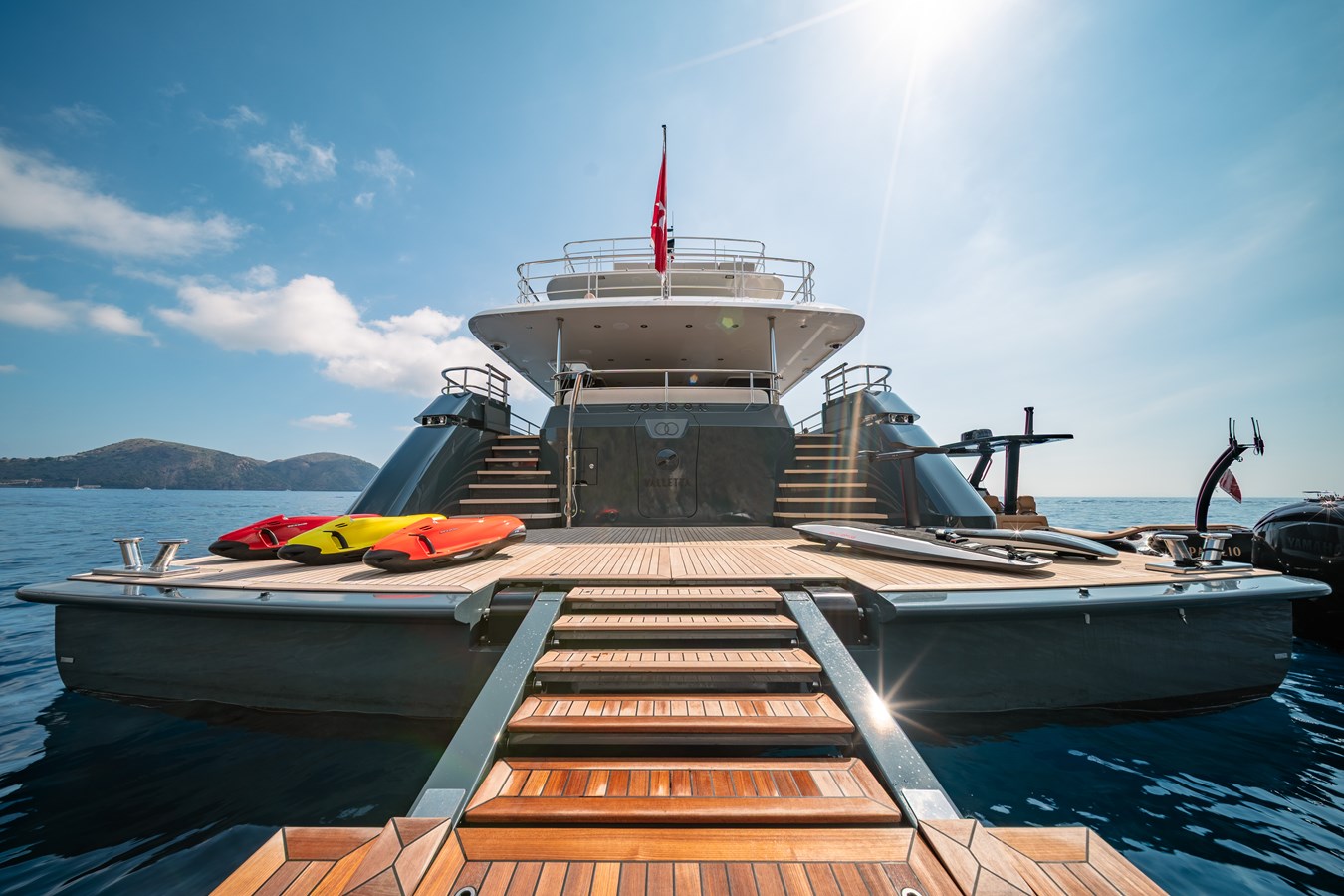

deck aft offers an additional lounge area with stairs leading down to the swimming
platform providing easy access to the water.

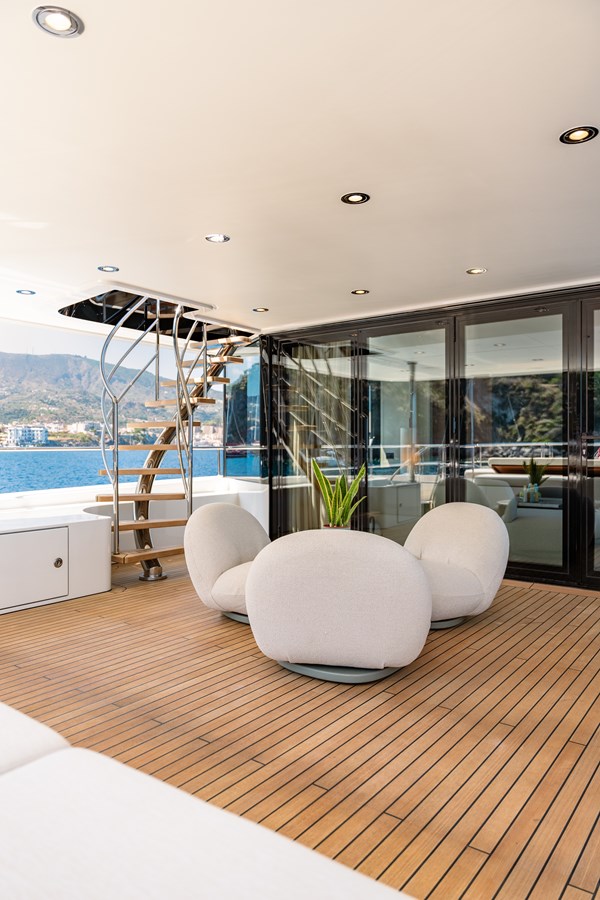

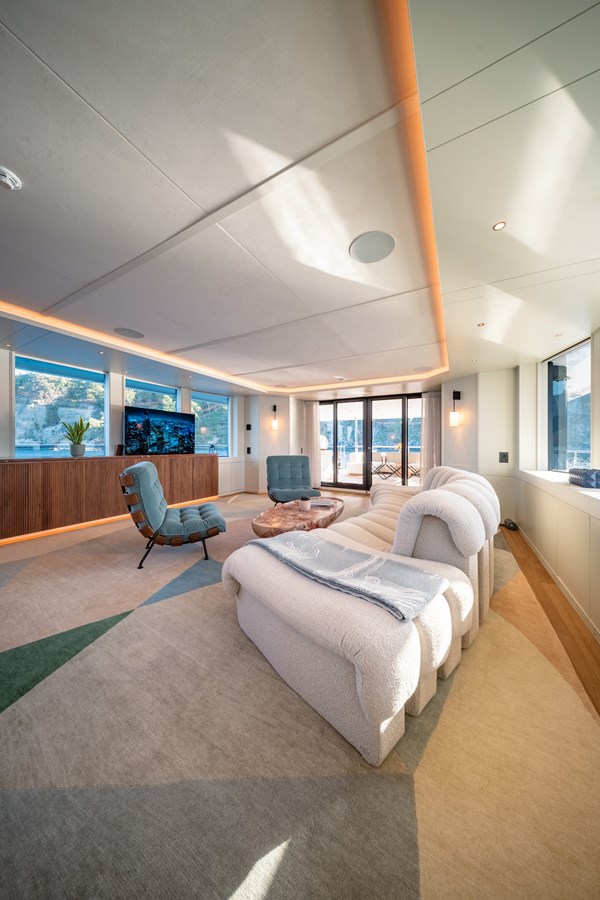

Large sliding doors seamlessly connect the winter garden with bridge deck aft,

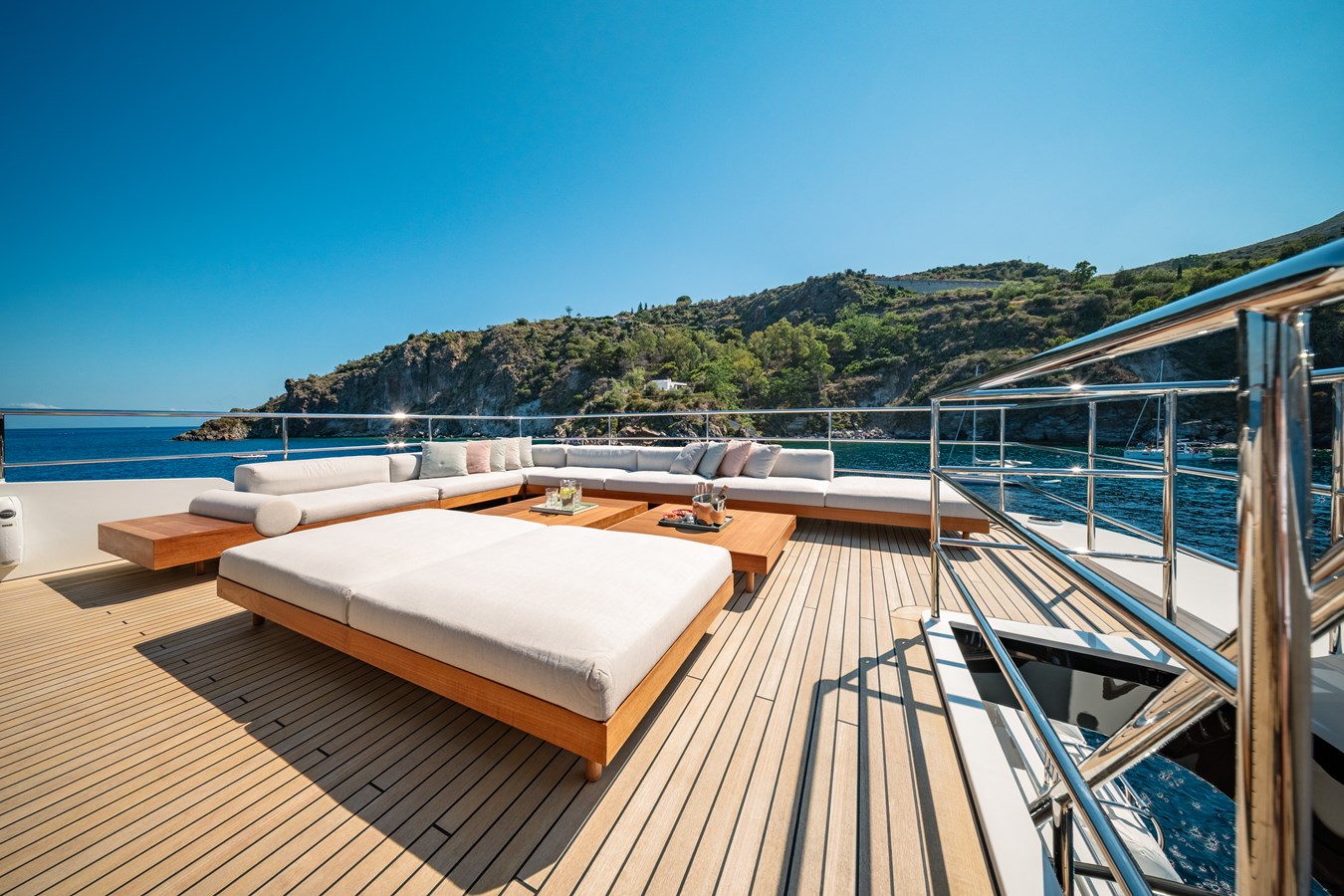

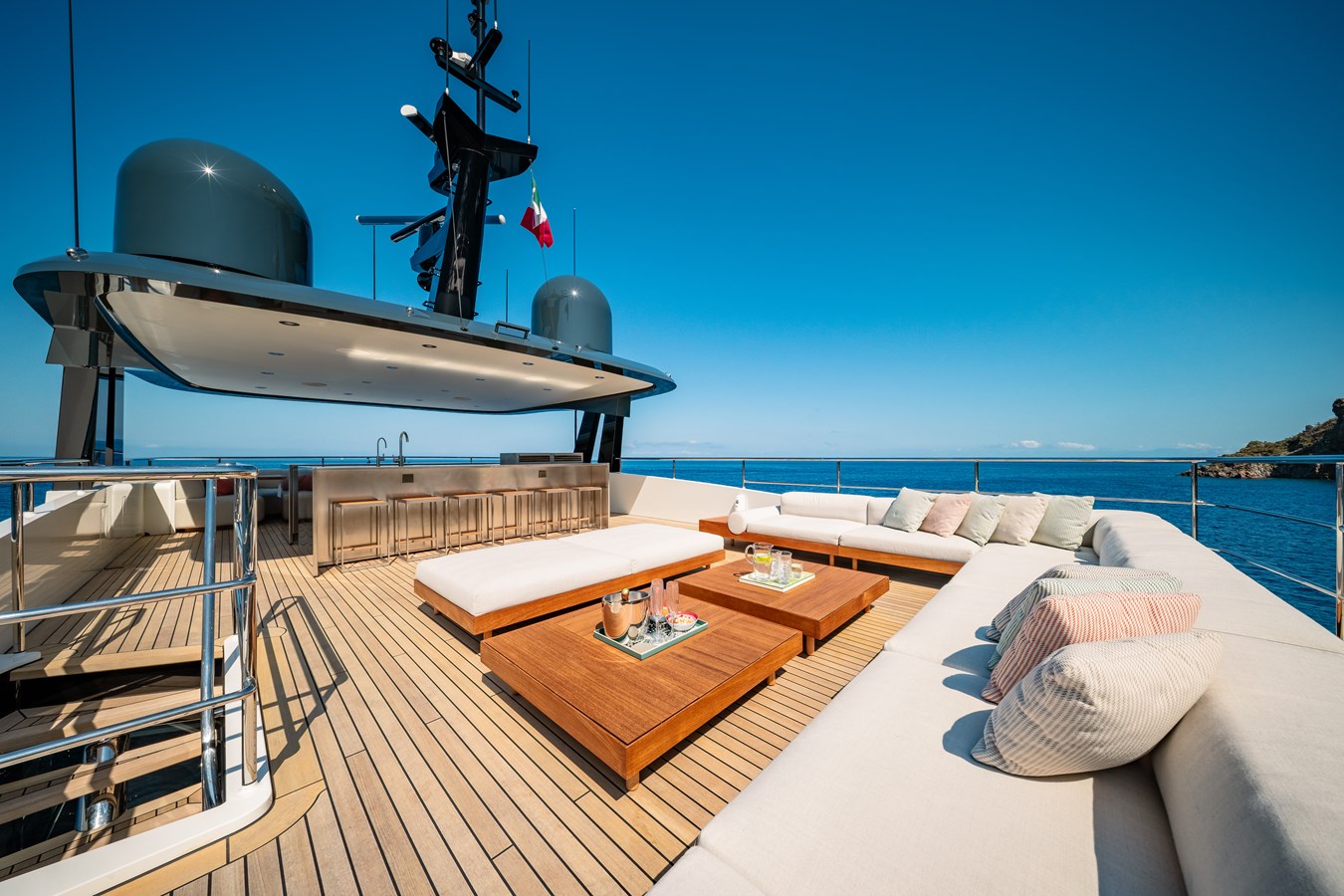

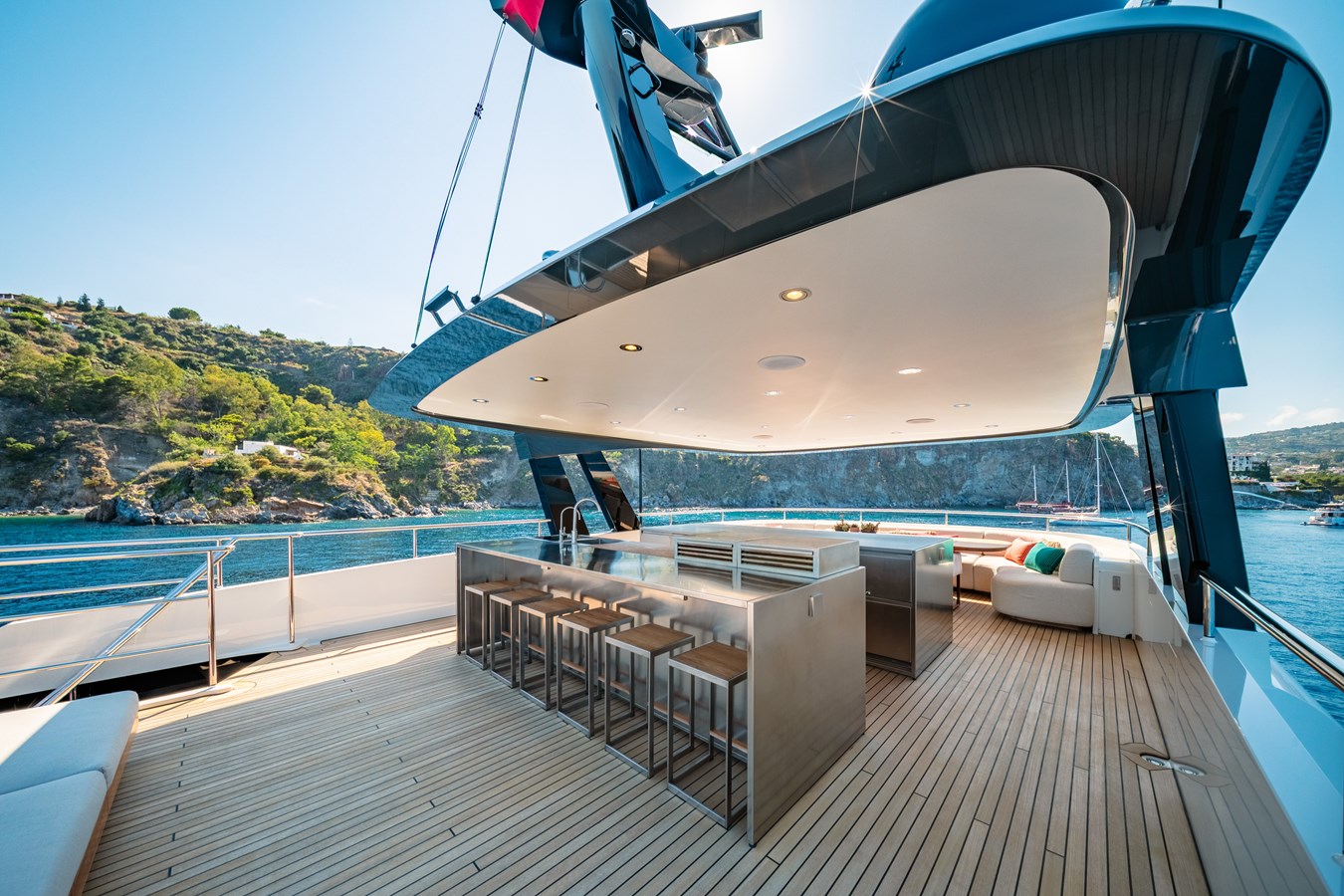

creating one large space to enjoy the best of both worlds, while the sun deck provides
360° views and a spacious lounge area with bar and grill.

An almost continuous band of panoramic windows on the main and bridge decks
offer up spectacular views, whilst maximising the feeling of space and light throughout
the yacht. The interior of COCOON feels significantly larger than her length suggests.

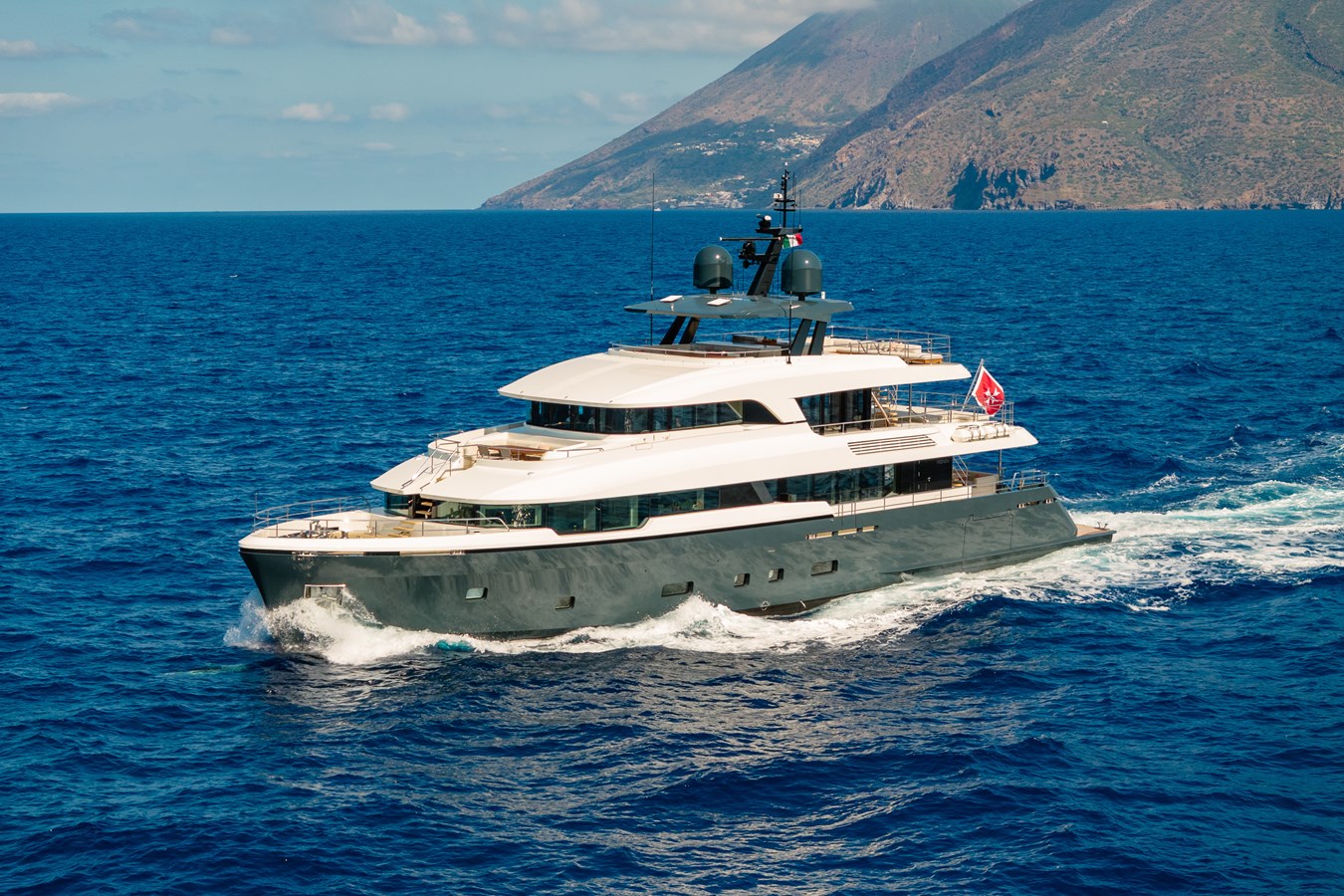

She is powered by twin Caterpillar engines delivering a combined 4,000 horsepower,
allowing for a top speed of 16.5 knots and a comfortable cruising speed of 14.5
knots. This exceptional blend of power, performance, and elegance guarantees an
unforgettable experience at sea.

KEY FEATURES
Award-winning Moonen yacht from the Caribbean line, built in the Netherlands
Exterior design by award-winning designer René van der Velden; interiors by Andreas Martin-Löf Arkitekter

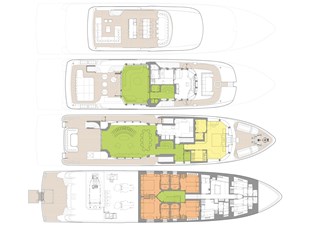

Expansive indoor-outdoor living across three decks
Extended swim platform with custom Hydromar Seascape sea transformer
Large main salon with adjacent formal dining area
Winter garden and bridge deck aft connected by sliding glass doors

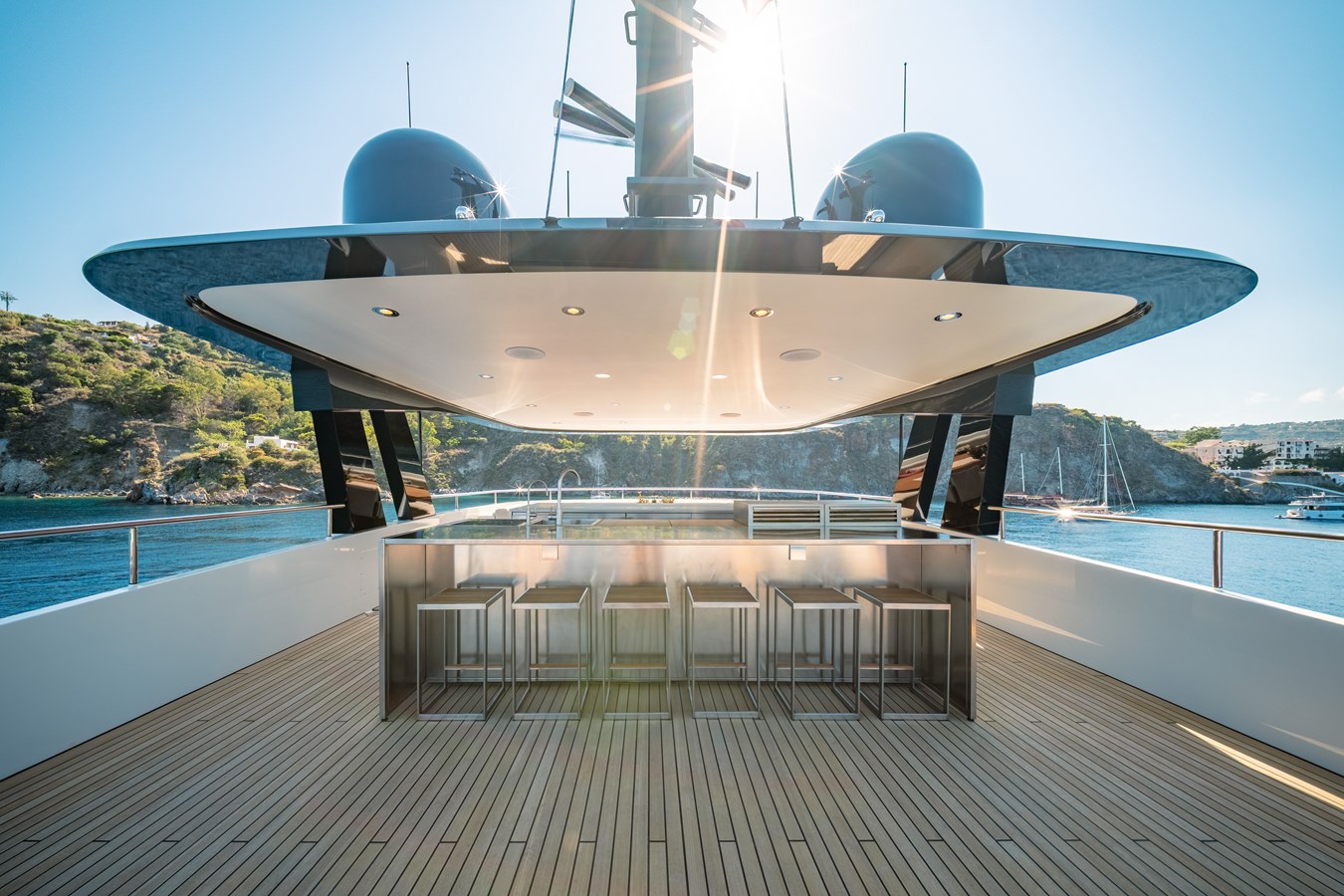

Extended sun deck with panoramic 360° views, lounge, bar and grill
Expansive glazing bringing abundant natural light throughout





LENGTH 37.8m
BUILDER MOONEN
ASKING PRICE ($23,155,493 USD est.) €19,995,000 EUR
BUILT 2023
BEAM N/A
DRAFT N/A
MX SPEED 16.5 Knots
CRUISING SPEED 14.5 Knots
CABINS 5
GROSS TONNAGE 345.00
DISPLACEMENT 280000 Kg
LOCATION Livorno, Tuscany, Italy

Make an Offer on This Listing!

FULL SPECIFICATIONS

DETAILED DESCRIPTION

#edmiston-espec { font-family: 'Helvetica Neue LT Std', 'Sans'; font-weight: 200; font-style: normal; text-align: justify; text-justify: inter-word; line-height: 1.5em; color: #444; } #edmiston-espec table { border-spacing: 0px; border-collapse: collapse; } #edmiston-espec td { text-align: left; vertical-align: top; padding: 0px; margin: 0px; line-height: 1.5em; } #edmiston-espec th { text-align: left; vertical-align: top; padding: 0px; margin: 0px; width: 5cm; } #edmiston-espec h1 { font-family: 'Times New Roman','Serif'; color: #DB001E; } #edmiston-espec h2 { font-family: 'Times New Roman','Serif'; color: #DB001E; } #edmiston-espec h3 { font-family: 'Times New Roman','Serif'; color: #222; } #edmiston-espec ul { list-style: none; margin: 0; padding: 0 0 0 20px; } #edmiston-espec li.bullet { list-style: disc; }

  1. MAIN CHARACTERISTICS

    TYPE
    • Full Displacement Motor Yacht
    BUILDER
    • Moonen Yachts
    MODEL
    • Martinique
    HULL NO.
    • YN201 #4
    IMO NUMBER
    • 9946685
    MMSI NUMBER
    • 256467000
    NAVAL ARCHITECT
    • Moonen Yachts
    EXTERIOR DESIGN
    • Rene van der Velden
    INTERIOR DESIGN
    • Andreas Martin-Löf Arkitekter
    YEAR
    • 2023
    CLASSIFICATION
    • Lloyd's
    CONSTRUCTION
    • Steel Hull
    • Aluminium Superstructure
    • Teak Decks
    CREW
    • Up to 7
    FLAG
    • Malta
    ENGINES
    • 2 x 1,435 kW (1,924 Hp) Caterpillar C32
    GT
    • 345
    DISPLACEMENT
    • Approx. 280 tons fully loaded

  2. DIMENSIONS

    LOA
    • 37.80m / 124'0"
    LWL
    • 34.50m / 113'2"
    BEAM
    • 8.00m / 26'3"
    DRAFT
    • 2.10m / 6'11" max

  3. SPEED & RANGE UNDER POWER

    MAXIMUM SPEED
    • 16.50 knots
    CRUISING SPEED
    • 14.50 knots
    ECONOMICAL SPEED
    • 10.00 knots
    RANGE
    • 4,000nm @ 10.00 knots

  4. CAPACITIES

    ACCOMMODATION
    • 10+2 guests in 5 cabin(s)
    CREW
    • 7 crew in 4 cabin(s)
    FUEL
    • 35,000 litres / 9,246 US gallons
    FRESH WATER
    • 8,000 litres / 2,113 US gallons
    LUBE OIL
    • 500 litres / 132 US gallons
    DIRTY OIL
    • 500 litres / 132 US gallons
    GREY WATER
    • 1,250 litres / 330 US gallons
    BLACK WATER
    • 1,250 litres / 330 US gallons

  5. ACCOMMODATION

    Accommodation for up to 10+2 guests in 5 cabins and up to 7 crew
    GUEST CABINS

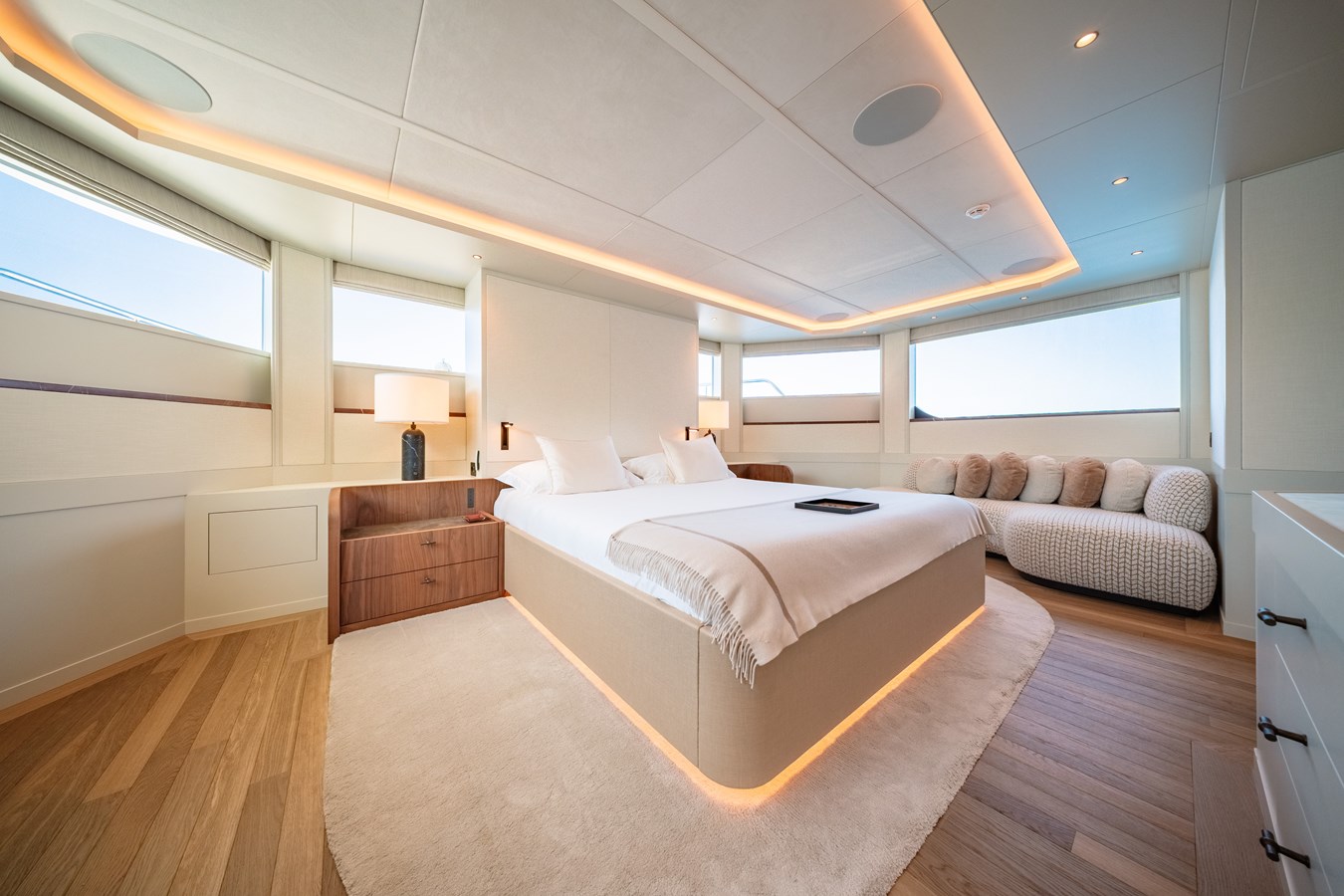

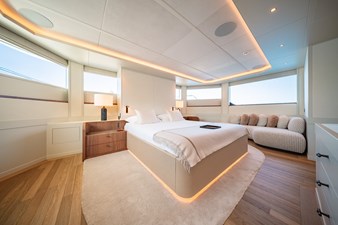

    • 1 x Master cabin

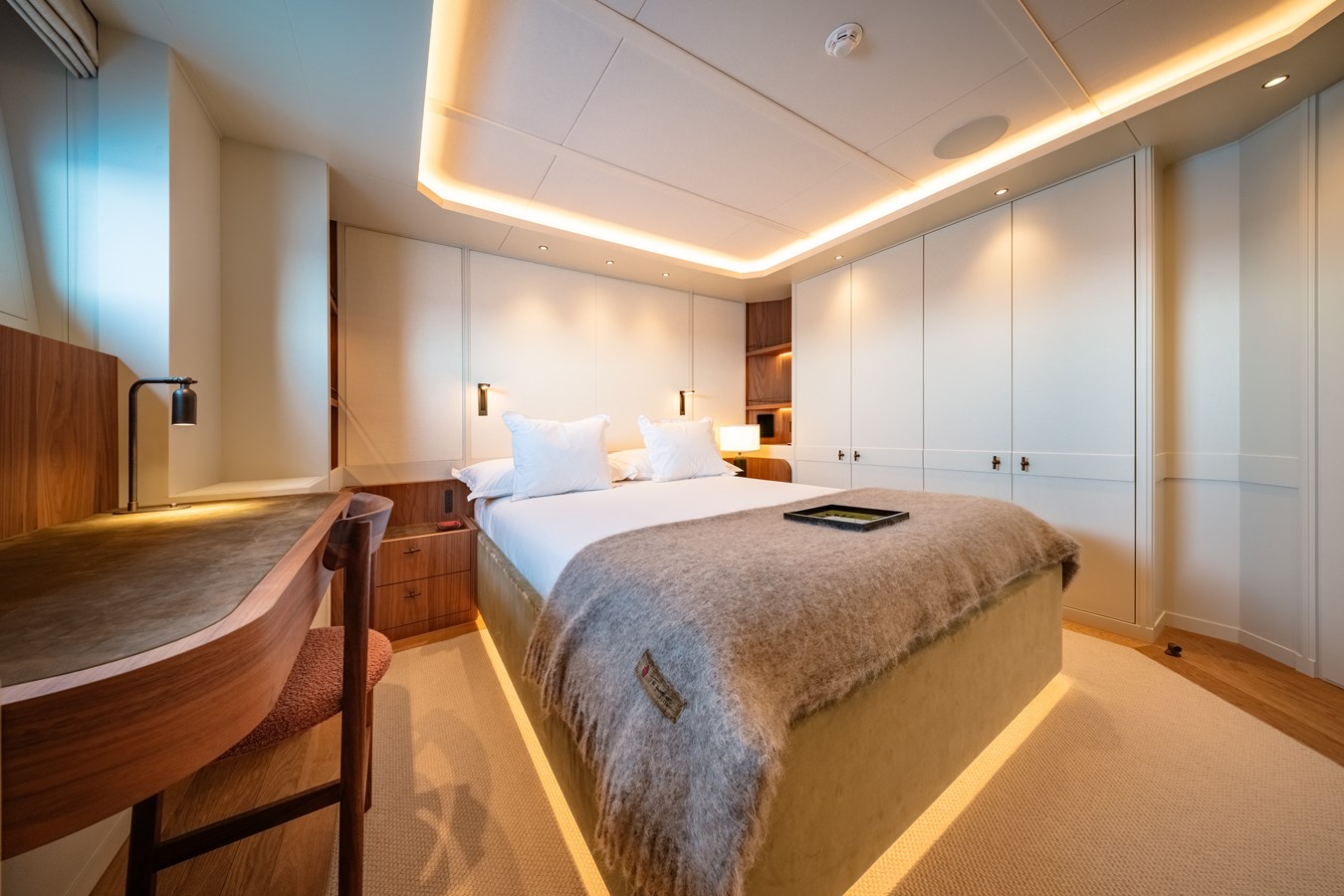

    • 2 x VIP cabins

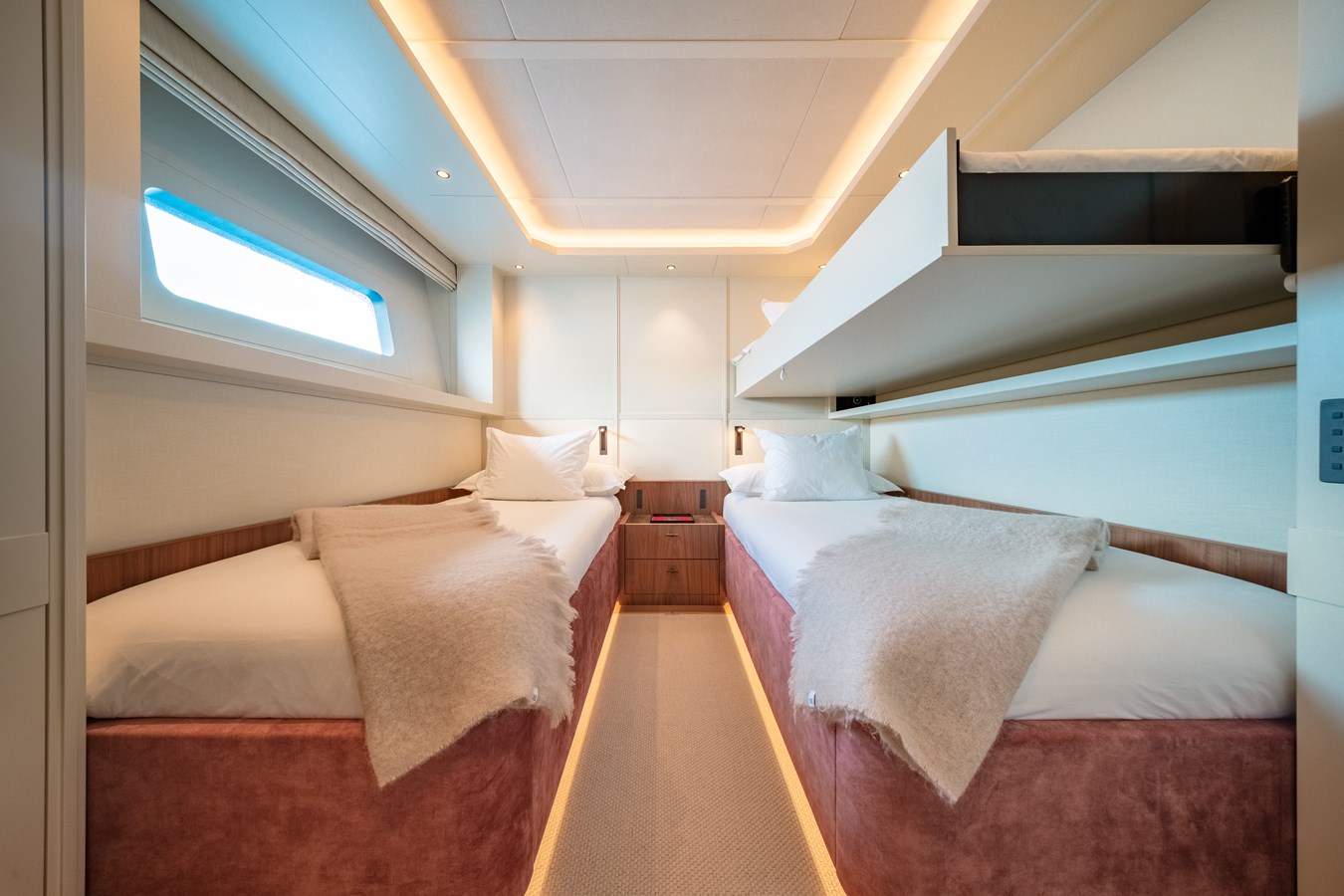

    • 2 x Twin cabins
    CREW CABINS
    • 1 x Captain cabin
    • 3 x Crew cabins

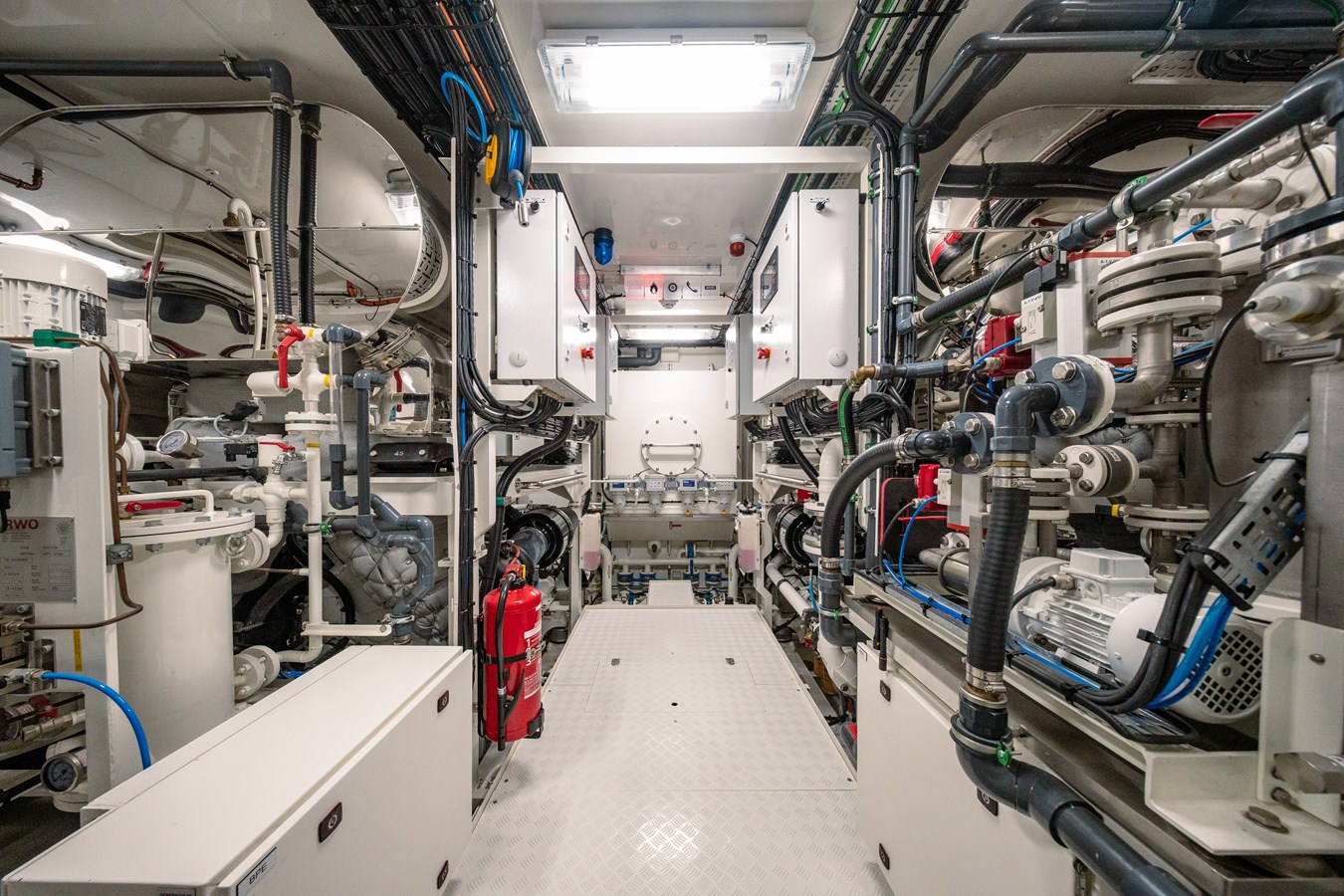

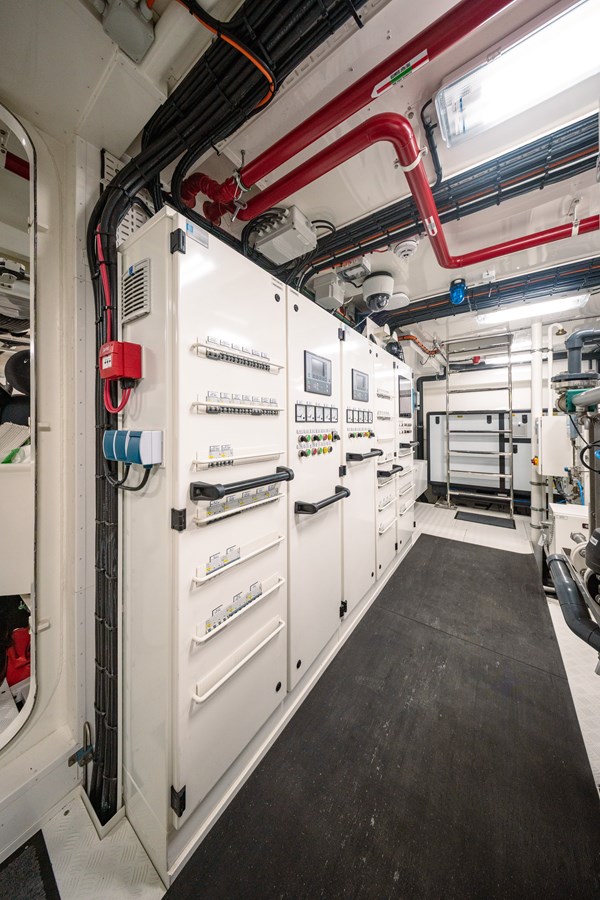

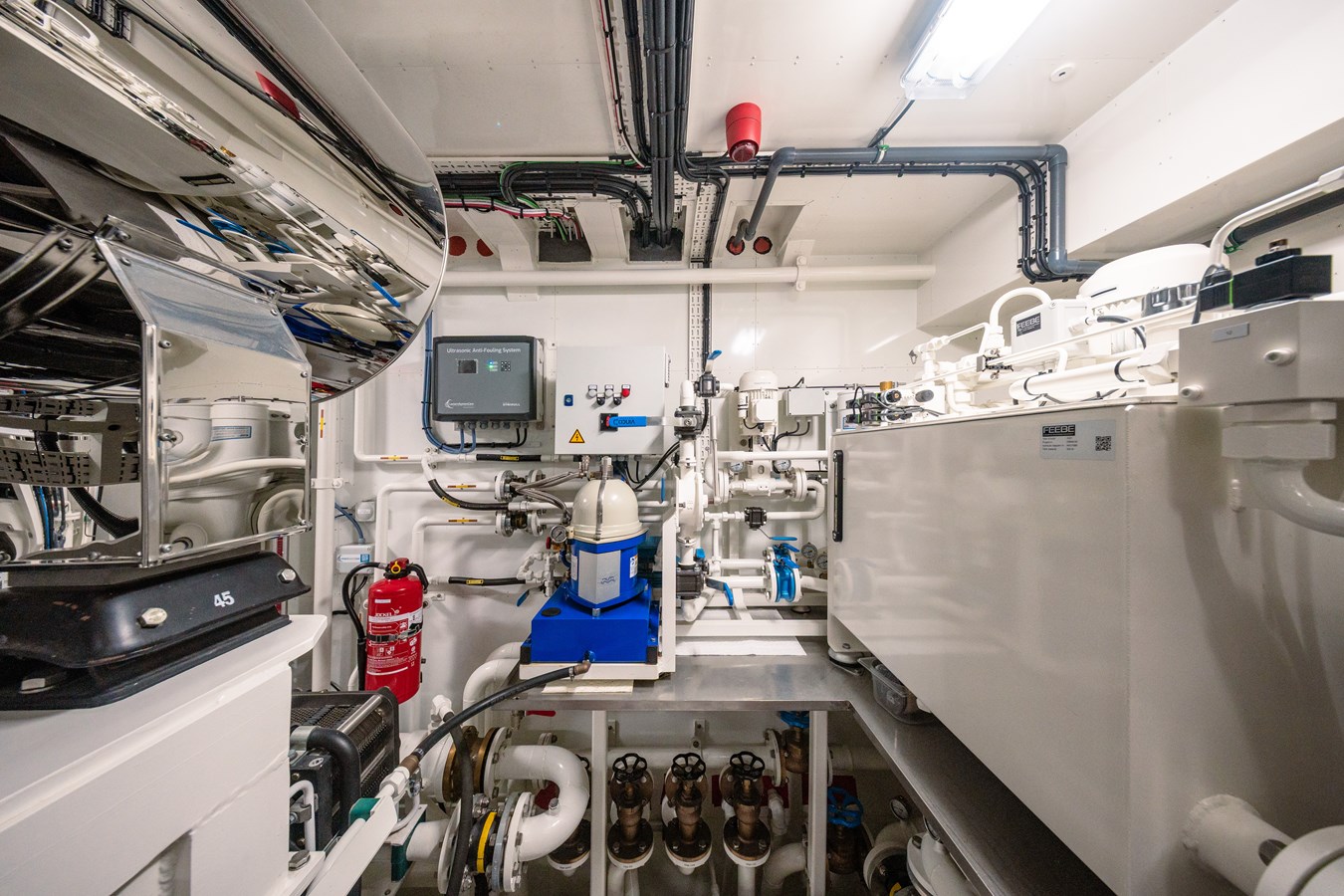

  6. MECHANICAL EQUIPMENT

    ENGINES
    • 2 x 1,435 kW (1,924 Hp) Caterpillar C32
    ENGINE HOURS
    • Port: 1,589 hours as of 11th Aug 2026
    • Starboard: 1,580 hours as of 11th Aug 2026
    GENERATORS
    • 2 x 70 kW (94 Hp) Caterpillar C4.4
    GENERATOR HOURS
    • Port: 1,976 hours as of 11th Aug 2026
    • Starboard: 2,156 hours as of 11th Aug 2026
    STABILISERS
    • CMC Marine
    AIR CONDITIONING
    • Mave
    BOWTHRUSTER
    • FEEBE
    GEARBOX
    • Reintjes WAF 542
    PROPULSION
    • Twin screw diesel yacht
    PROPELLERS
    • SIP Marine

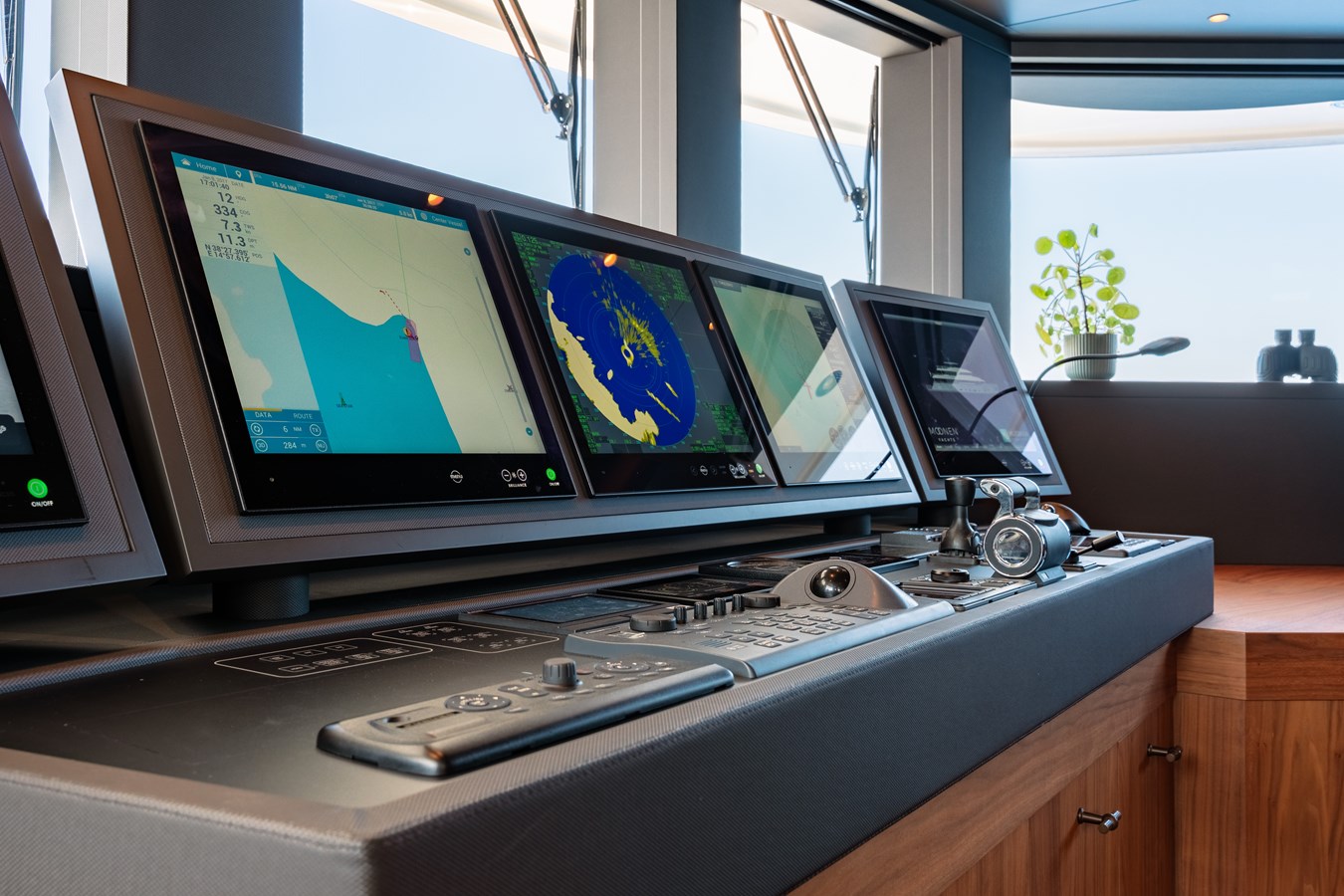

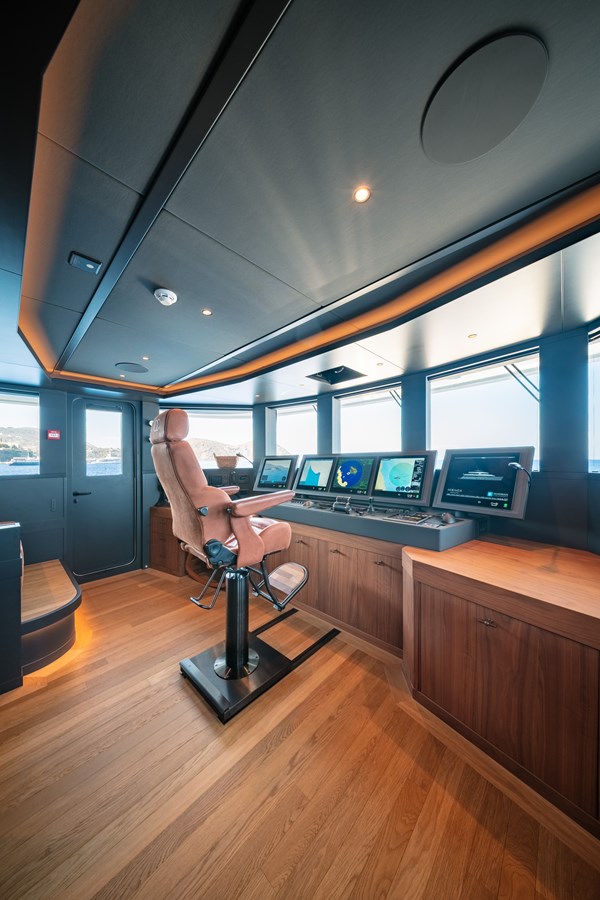

    STEERING SYSTEM
    • Simrad
    RUDDER ANGLE INDICATORS
    • Simrad

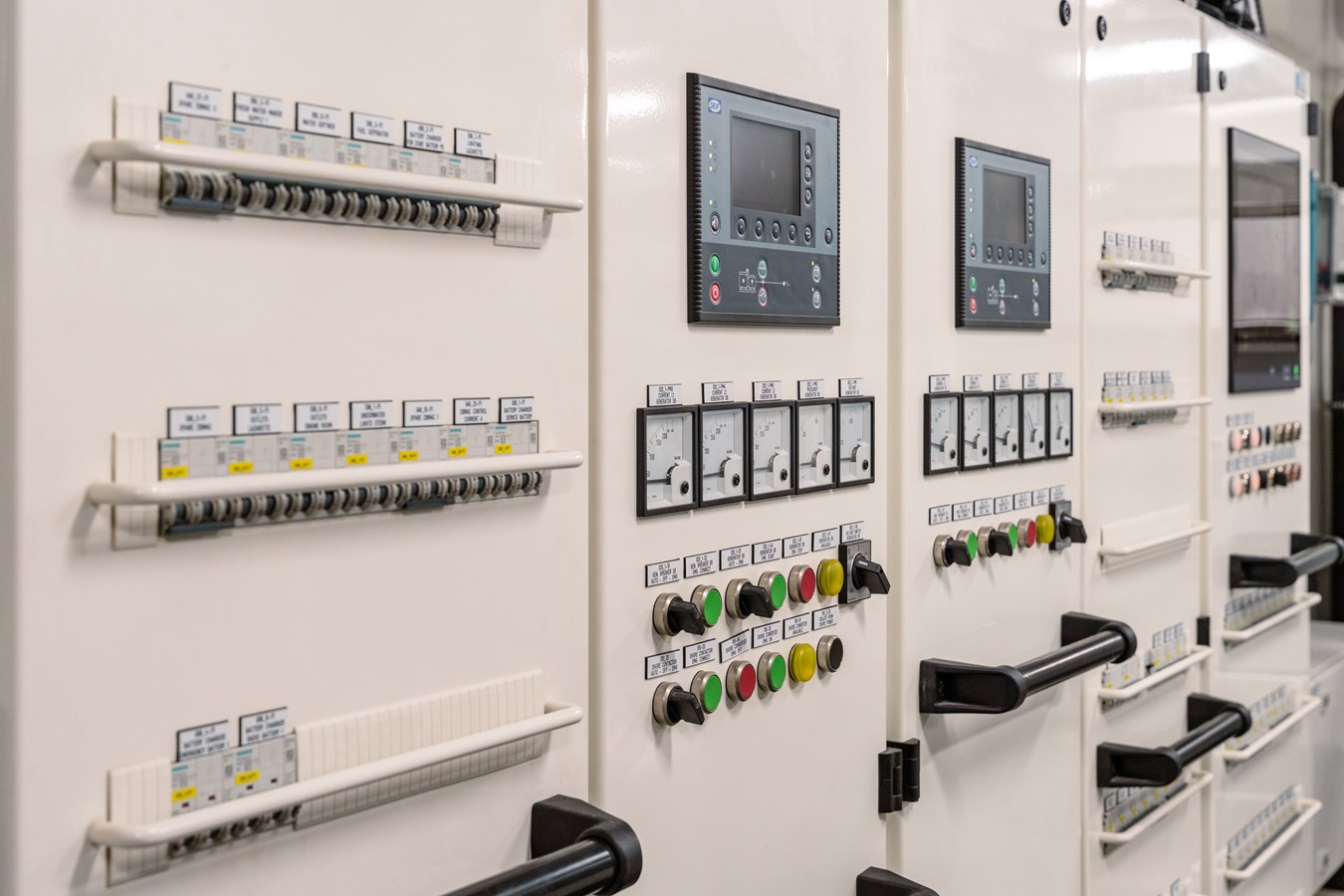

    SHORE POWER
    • Input voltage: 3 phase 400Volt /50Hz
    • Output power: 3 phase 400/230Volt/50Hz
    • Glendinning ablemaster
    BATTERIES
    • 2 x 24V-100Ah Starter battery sets for the main engines/generators
    • 1 x 24V-440Ah Service battery set for navigation lights, auxiliary circuits, etc
    • 1 x 24V-660Ah Emergency battery set for navigation/emergency lights, radio
    • 1 x Reserve radio (GMDSS) battery set 24V-220Ah
    CONVERTER
    • Eekels 100kVA
    HYDRAULICS
    • FEEBE
    WATER MAKER
    • 2 x Idromar MC3J
    BOILERS
    • ACV Type Smart 210
    FUEL FILTERS
    • Separ & Racor
    FUEL OIL SEPARATOR
    • Alfa Laval
    OIL / WATER SEPARATOR
    • RWO Type - OWS-COM 0.25
    SEWAGE TREATMENT
    • Hamann
    TOILET SYSTEM
    • Planus

  7. COMMUNICATION EQUIPMENT

    CELLULAR SYSTEM
    • 2 x Starlink systems
    SATCOM
    • Sailor VSAT
    • Sailor Inmarsat C
    VHF
    • Sailor VHF DSC - Class A / Class D
    TELEPHONE
    • Panasonic

  8. DECK EQUIPMENT

    CAPSTANS
    • 2 x Hydraulic driven capstans, Muir VC4000
    ANCHORS
    • 2 x Pool-N galvanised steel anchors, 140kg each
    ANCHOR CHAINS
    • 1 x 120m of chain for each anchor
    PASSERELLE
    • Hydraulic passerelle in the aft deck
    SWIMMING PLATFORM

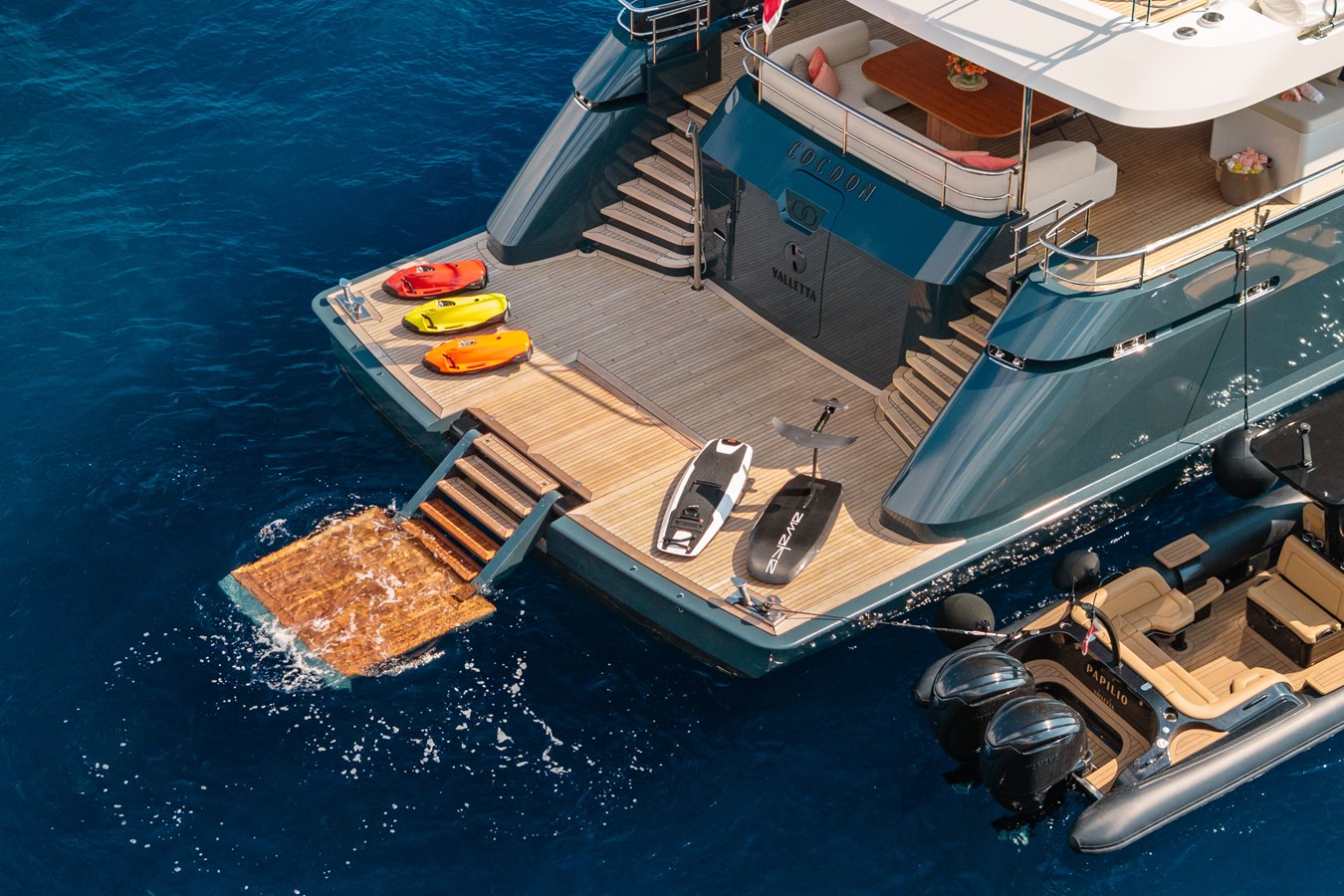

    • Extended swim platform with custom Hydromar Seascape sea transformer
    SUN DECK
    • Extended sun deck
    AWNING
    • Multi-plex

  9. ENTERTAINMENT EQUIPMENT

    MAIN SALON
    • 1 x 55" TV
    • Apple TV
    • Satellite
    • TV lift
    OWNER'S CABIN
    • 1 x 55" TV
    • Apple TV
    • Satellite
    • TV lift
    GUEST CABINS
    • 1 x 43" TV
    • Apple TV
    • Satellite
    CAPTAIN'S CABIN
    • 1 x 32" TV
    • Apple TV
    • Satellite
    CREW MESS
    • 1 x 32" TV
    • Apple TV
    • Satellite
    BRIDGE DECK
    • 1 x 100" TV
    • Apple TV
    • Satellite
    LOUNGE
    • 1 x 43" TV
    • Apple TV
    • Satellite

  10. GALLEY & LAUNDRY EQUIPMENT

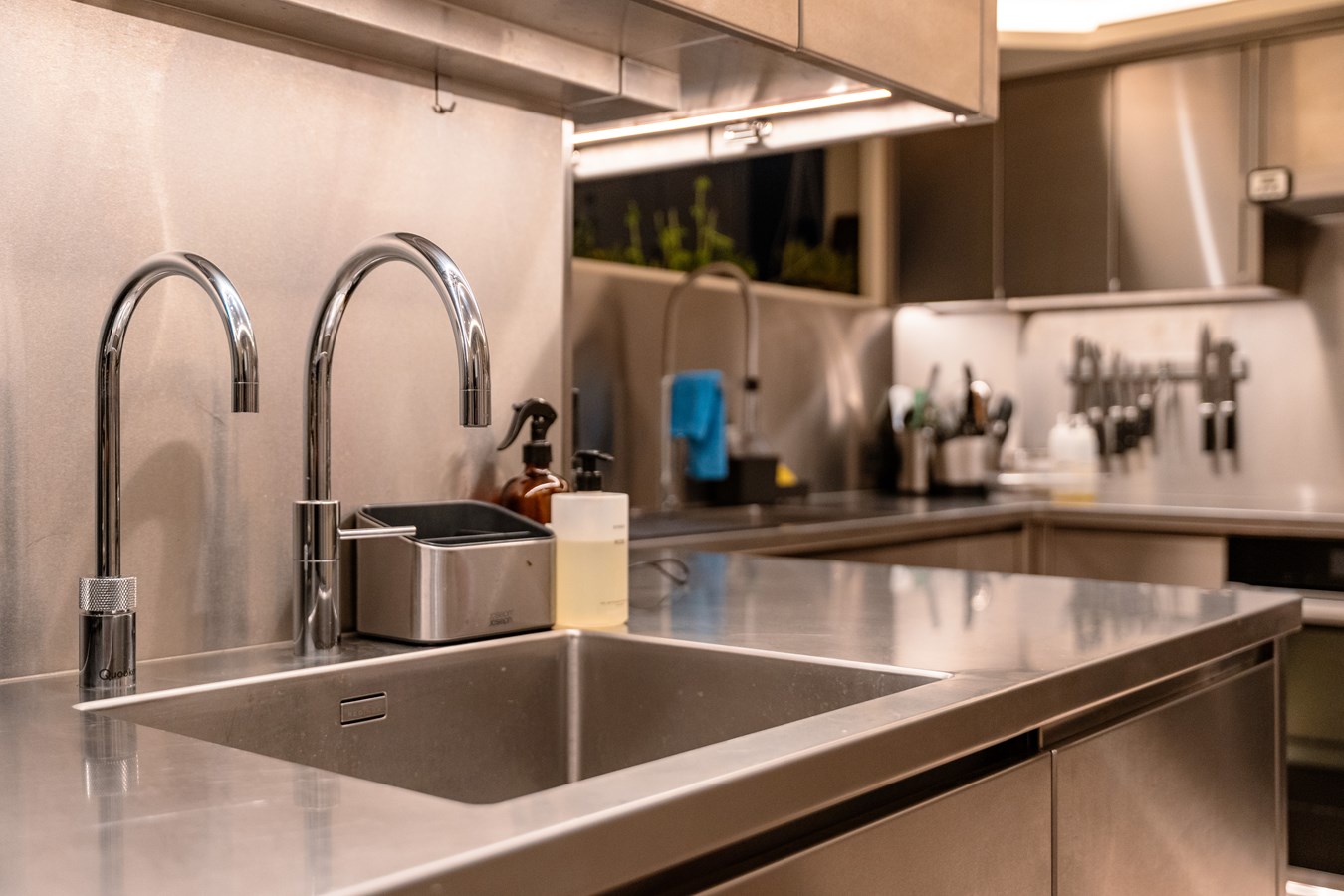

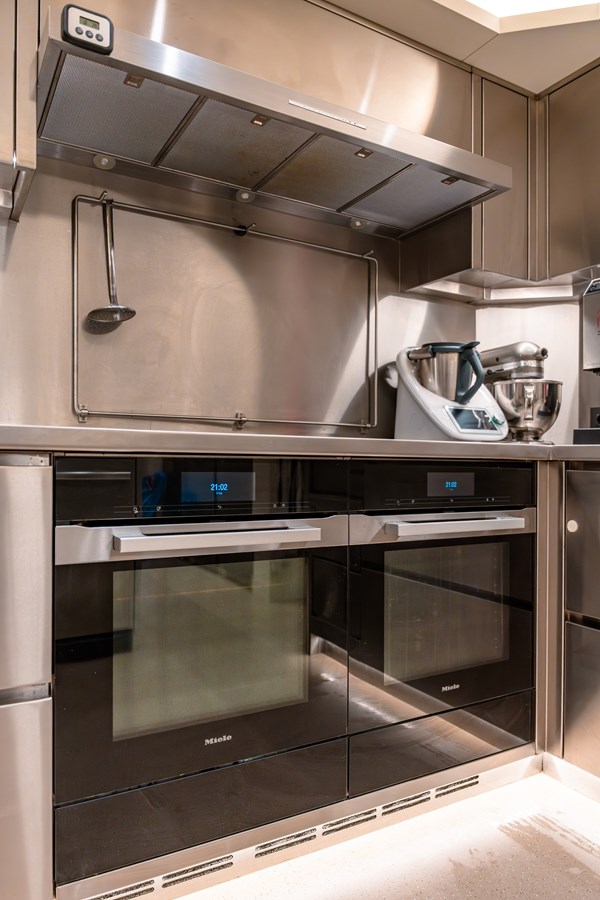

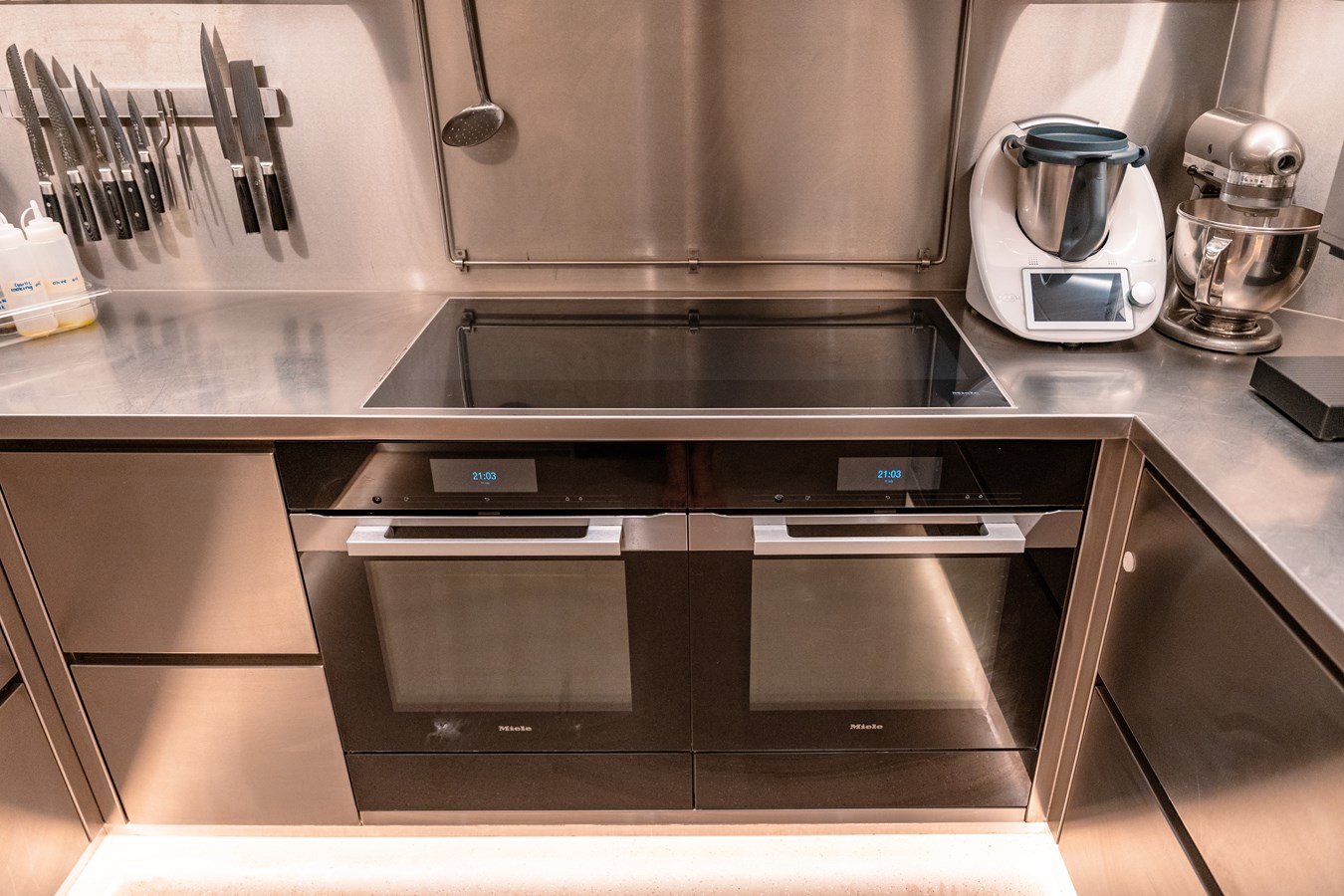

    GALLEY
    • 3 x Refrigerator /freeze combi
    • 2 x Ovens
    • 2 x Miele plate warmers
    • 2 x Miele Dishwashers
    • 1 x Miele Cooking plate Induction
    • 1 x BoschMicrowave
    • 1 x Hoshizaki Icemaker
    • 1 x Whirlpool Trash Compactor
    MAIN SALON
    • 1 x SubZero refrigerator
    • 1 x SubZero 42-bottle capacity wine cooler
    BRIDGE DECK PANTRY
    • 1 x Refrigerator
    CREW MESS
    • 1 x Miele refrigerator
    • 1 x Miele dishwasher
    LAZARETTE
    • 1 x Hoshizaki ice maker
    • 1 x SubZero refrigerator
    SUN DECK
    • 2 x SubZero refrigerators
    • 1 x Hoshizaki icemaker
    • 1 x Miele dishwasher
    • 1 x SubZero 42-bottle capacity wine cooler
    • 1 x Roshults BBQ
    • 1 x Induction hob
    LAUNDRY
    • 2 x Professional washing machines
    • 2 x Professional dryers

  11. SECURITY & SAFETY EQUIPMENT

    SAFETY
    • 4 x 10 Person life rafts with A-pack
    • 4 x Life buoys
    • 20 x Inflatable life jackets with lights
    • 20 x Immersion suits
    • MedAire Global Oxykit
    • First Aid kit
    SECURITY
    • CCTV System
    FIRE FIGHTING
    • NOVEC Fire extinguishing system
    • Freestanding fire extinguishers
    • Fire alarms

  12. TENDER & WATERSPORTS EQUIPMENT

    TENDER
    • 1 x Williams 195HP
    WATERSPORTS
    • 1 x Seabob F5
    • 1 x AWAKE Foil board
    • 1 x Jobe inflatable
    OTHER EQUIPMENT
    • 2 x E-Bikes

  13. COMMENTS

    The 37.8m (124ft) COCOON, is a Martinique Model delivered in 2023 by Moonen Yachts in The Netherlands. This award winning and most popular build in the Moonen Caribbean line, features exterior design by renowned Dutch designer René van der Velden and naval architecture by Diana Yacht Design, the Scandinavian-styled interior was designed by Sweden’s Andreas Martin-Löf Arkitekter.

    Elegant and sophisticated, COCOON is both an entertainer's dream and an ideal family getaway. With space to accommodate 12 guests and 7 crew, her exterior design focuses on creating the perfect indoor-outdoor connection, with plenty of comfortable seating and dining areas spread over three decks.



    The spacious main deck is home to the large saloon, adjacent formal dining area, a large galley and an impressive master suite with His and Hers bathroom. Outside, main deck aft offers an additional lounge area with stairs leading down to the swimming platform providing easy access to the water.

    Large sliding doors seamlessly connect the winter garden with bridge deck aft, creating one large space to enjoy the best of both worlds, while the sun deck provides 360° views and a spacious lounge area with bar and grill.

    An almost continuous band of panoramic windows on the main and bridge decks offer up spectacular views, whilst maximising the feeling of space and light throughout the yacht. The interior of COCOON feels significantly larger than her length suggests.

    She is powered by twin Caterpillar engines delivering a combined 4,000 horsepower, allowing for a top speed of 16.5 knots and a comfortable cruising speed of 14.5 knots. This exceptional blend of power, performance, and elegance guarantees an unforgettable experience at sea.

    • KEY FEATURES

      • Award-winning Moonen yacht from the Caribbean line, built in the Netherlands
      • Exterior design by award-winning designer René van der Velden; interiors by Andreas Martin-Löf Arkitekter
      • Expansive indoor-outdoor living across three decks
      • Extended swim platform with custom Hydromar Seascape sea transformer
      • Large main salon with adjacent formal dining area
      • Winter garden and bridge deck aft connected by sliding glass doors
      • Extended sun deck with panoramic 360° views, lounge, bar and grill
      • Expansive glazing bringing abundant natural light throughout
